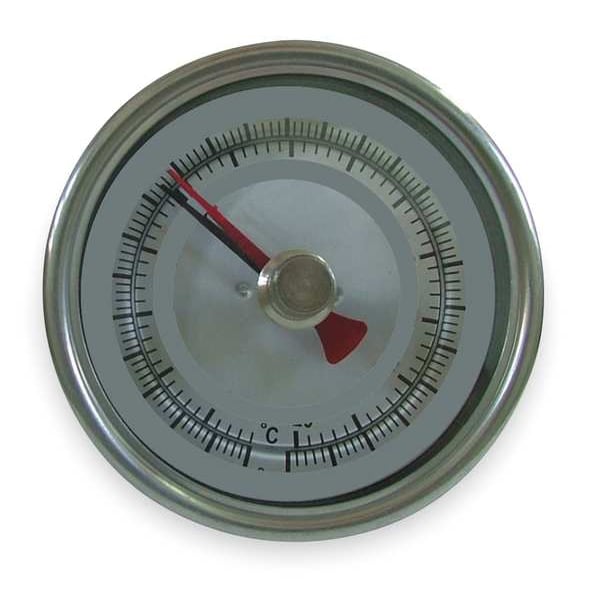

Maximum/minimum bimetal thermometer, range -40 to 160 Degrees F, 4" stem.

  • Mfr # BTM3404D

  • Zoro # G2117832


product price: $107.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-2%
Connection Location
Back
Dial Size
3 in
Case Material
Stainless Steel
Stem Material
304 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BTM3404D
Zoro #
G2117832
UPC #
094704389288
Country of Origin
China

Dimensions

Dial Size
3 in
Connection Size
1/2 in NPT
Stem Length
4 in
Stem Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Stem Diameter
0.25 in
Thread Size
1/2 in
Dial Diameter
3 in
Manufacturer Warranty Length
1 yr

Details

Item
Min/Max Dial Thermometer
Accuracy
+/-2%
Connection Location
Back
Case Material
Stainless Steel
Stem Material
304 Stainless Steel
Temp. Range (F)
-40 Degrees to 160 Degrees
Sensing Element
Bimetal
Window Material
Glass
Temp. Range (C)
-40 Degrees to 70 Degrees
Case
Hermetically Sealed
Corrosion Resistant
No
Application
Oven Monitoring, Refrigerators
Scale Type
Dial
Maximum Temperature F
160 Degrees F
Process Connection
1/2 in NPT
Glow-in-the-Dark
No
Thread Type
NPT
Lead Free
No
Lens Material
Glass
Functions
Min/Max Indicating
Minimum Temperature C
-40 Degrees C
Minimum Temperature F
-40 Degrees F
Long Reach
No
Thermometer Type
Min/Max Reading Dial Thermometer
Includes NIST-Traceable Certificate
No
Vibration Resistant
No
Thread Gender
Male
Scale
Celsius, Fahrenheit
Construction
300 Stainless Steel Housing with 304 Stainless Steel Stem and Glass Lens
Case Features
Hermetically Sealed
Temperature Range
-40 Degrees to 160 Degrees F/-40 Degrees to 71.1 Degrees C
Graduations
2 Degrees F/2 Degrees C
Shatterproof
No
Housing Material
300 Stainless Steel
Maximum Temperature C
71.1 Degrees C
Maximum Temperature °C
71.1 Degrees C
Minimum Temperature °C
-40 Degrees C
Maximum Temperature °F
160 Degrees F
Minimum Temperature °F
-40 Degrees F
Minimum Temperature °C
-40 Degrees C
Maximum Temperature °C
71.1 Degrees C
Maximum Temperature °F
160 Degrees F
Minimum Temperature °F
-40 Degrees F

Description

Dial Thermometer, Temperature Range -40 Degrees to 160 Degrees F/-40 Degrees to 71.1 Degrees C, Stem Length 4 in, Dial Diameter 3 in, 1/2 in NPT, Back, Includes NIST-Traceable Certificate No, Housing Material Stainless Steel, Lens Material Glass
