  9. Mini-size flow switch, brass upper and lower body, 1-1/2" NPT, brass tee.

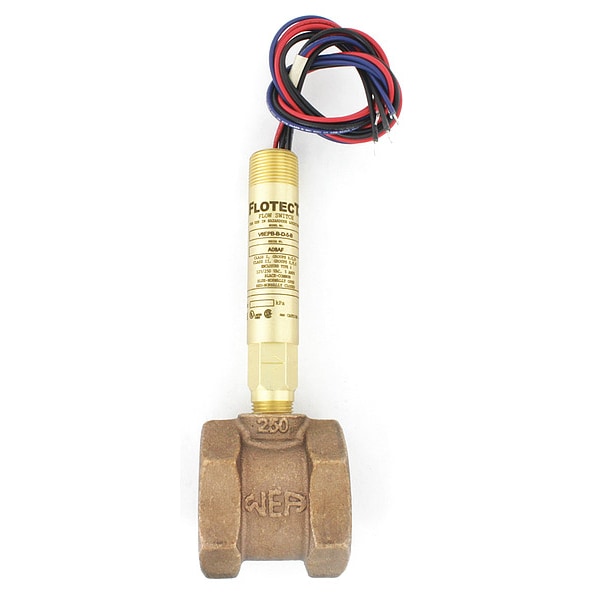

Dwyer Instruments Mini-size flow switch, brass upper and lower body, 1-1/2" NPT, brass tee. V6EPB-B-D-5-B - main

Mini-size flow switch, brass upper and lower body, 1-1/2" NPT, brass tee.

  • Mfr # V6EPB-B-D-5-B

  • Zoro # G0505654

product price: $636.99
/ea
Free Shipping & Returns

Key Features

Type
Piston
Housing Material
Brass
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/2 in
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-D-5-B
Zoro #
G0505654
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/2 in
Max. Duct Size (In.)
1 1/2 in
Connection Size (In.)
1-1/2 FNPT
Overall Length
3.6 in
Overall Width
3.6 in
Overall Height
4.8 in

Details

Item
Liquid Flow Switch
Type
Piston
Housing Material
Brass
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Max. Pressure (PSI)
250 psi
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Application
Coolant Loops, Other
Switch Type
DPDT
Max. Ambient Temp. (F)
167 Degrees F
Min. Fluid Temp. (F)
-4 Degrees F
For Use With
Liquids or Gases
Phase
Single
Body Material
Brass
Material of Construction
Brass
Min. Ambient Temp. (F)
-4 Degrees
Flow Rate
6 gpm
Contact Rating
5A at 125/250V AC
Compliance
CSA, UL
Hz
50/60
Max. Fluid Temp. (F)
220 Degrees F
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Contact Rating (DC)
13 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Media Temperature - Maximum
220 Degrees F
Set Point Configuration
Adjustable
Switch Position
Normally Closed, Normally Open
Flow Switch Type
Paddle
Switch Enclosure
NEMA 4
Contact Rating (AC)
5 A @ 125/250V
Frequency
50 Hz, 60 Hz
Ambient Temperature - Maximum
167 Degrees F
Media Temperature - Minimum
-4 Degrees F
Ambient Temperature - Minimum
-4 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 13 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
