Madison

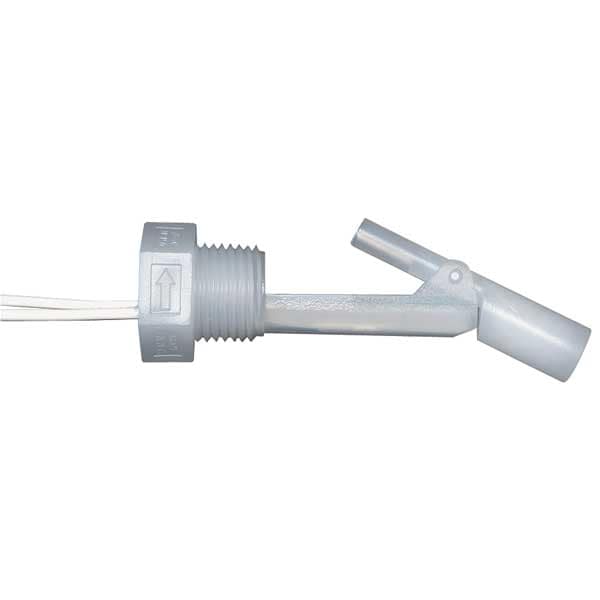

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

product price: $14.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 240VAC
  • Max. Pressure 100 psi
  • Overall Length 2.75 in
  • Float Specific Gravity 0.6
  • Operating Temp. Range 221 Degrees F Max.
See all product information

Product Information

Dimensions

Overall Length 2.75 in
Stem Length 2.75 in
Width 0.6 in
Float Length 1.75 in
Float Dia. 1.0 in
Conduit Size 1/2 in
Tank Connection Size 1/2 in NPT
Overall Width 0.6 in
Stem Thread Size 1/2 in NPT
Float Diameter 1 in

Details

Voltage 240VAC
Max. Pressure 100 psi
Float Specific Gravity 0.6
Item Alternator Closed Liquid Level Switch
Operating Temp. Range 221 Degrees F Max.
Float Switch Contact Form SPST
Mounting Side
Float Switch Float Material Polypropylene
Max. Current 0.28 A
Standards CE, CSA, NSF, UL Listed
Switch Function Selectable
Stem Material Polypropylene
Float Material Polypropylene
Max. Voltage 240 V
Body Material Polypropylene
Electrical Connections 22 ga MTW Coated 24 in Leads
VA Rating 30
Contact Form SPST
Series M8750
Product Type Alternator Closed Liquid Level Switch
Operating Temperature - Maximum 221 Degrees F
Voltage Rating - Maximum 120 V DC, 240 V AC
Minimum Media Specific Gravity 0.63
Proof Pressure 100 psi
Current Rating - Maximum 0.28 A
Electrical Connection Lead Wires

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in NPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Overall Length 2.75 in, Float Material Polypropylene, Float Length 1.75 in, Float Dia. 1.0 in, Stem Material Polypropylene, Stem Length 2.75 in, Width 0.6 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Polypropylene, Conduit Size 1/2 in, Standards CE, CSA, NSF, UL Listed
