  9. Mini-size flow switch, brass upper and lower body, 1/2" NPT, brass tee.

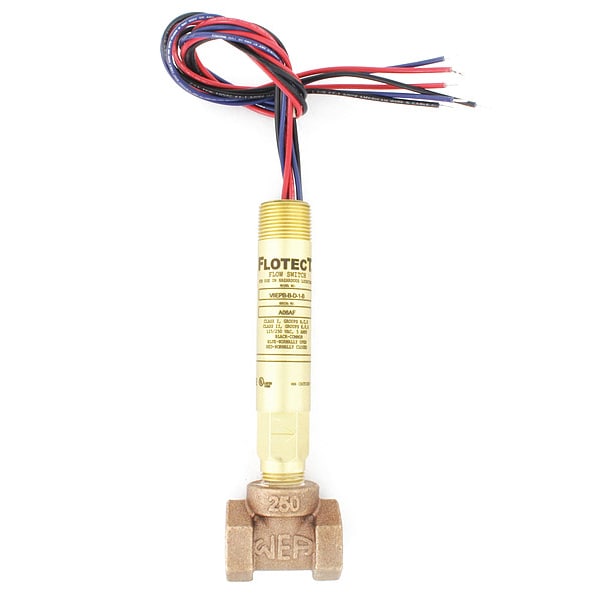

Dwyer Instruments Mini-size flow switch, brass upper and lower body, 1/2" NPT, brass tee. V6EPB-B-D-1-B - main

Mini-size flow switch, brass upper and lower body, 1/2" NPT, brass tee.

  • Mfr # V6EPB-B-D-1-B

  • Zoro # G0506363

product price: $414.99
/ea
Free Shipping & Returns

Key Features

Type
Piston
Housing Material
Brass
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-D-1-B
Zoro #
G0506363
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Max. Duct Size (In.)
1/2 in
Connection Size (In.)
1/2 FNPT
Overall Height
4.8 in
Overall Width
3.6 in
Overall Length
3.6 in

Details

Item
Liquid Flow Switch
Type
Piston
Housing Material
Brass
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Material of Construction
Brass
Compliance
CSA, UL
Body Material
Brass
Max. Pressure (PSI)
250 psi
Min. Fluid Temp. (F)
-4 Degrees F
Switch Type
DPDT
For Use With
Liquids or Gases
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Min. Ambient Temp. (F)
-4 Degrees
Max. Fluid Temp. (F)
220 Degrees F
Flow Rate
1.5 gpm
Contact Rating
5A at 125/250V AC
Max. Ambient Temp. (F)
167 Degrees F
Hz
50/60
Phase
Single
Application
Coolant Loops, Other
Ambient Temperature - Minimum
-4 Degrees F
Switch Position
Normally Closed, Normally Open
Frequency
50 Hz, 60 Hz
Contact Rating (AC)
5 A @ 125/250V
Contact Rating (DC)
5 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Ambient Temperature - Maximum
167 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Flow Switch Type
Paddle
Set Point Configuration
Adjustable
Switch Enclosure
NEMA 4
Media Temperature - Minimum
-4 Degrees F
Media Temperature - Maximum
220 Degrees F
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 5 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
