Shop MADISON

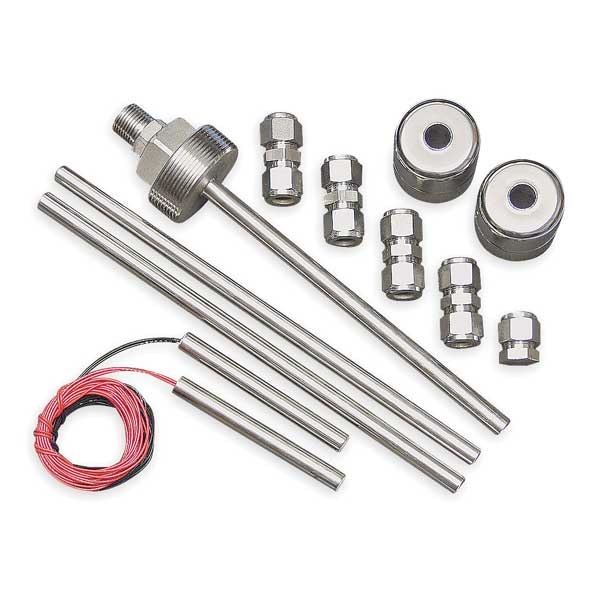

SPST Multi-level Liquid Level Switch Selectable 240VAC 200 psi

  • Mfr # ML5555
  • Zoro # G1781841
product price:
$
511.99
/ea
Free Shipping & Returns

Key Features

Voltage
240VAC
Max. Pressure
200 psi
Float Dia.
2.13 in
Max. Current
0.5 A
VA Rating
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ML5555
Zoro #
G1781841
UPC #
094700878625
Country of Origin
United States
Voltage
240VAC
Max. Pressure
200 psi
Item
Multi-Level Liquid Level Switch
Max. Current
0.5 A
VA Rating
60
Operating Temp. Range
392 Degrees F Max
Standards
CE, UL Listed
Body Material
Stainless Steel
Contact Form
SPST
Electrical Connections
22 AWG PTFE
Stem Material
316 Stainless Steel
Float Specific Gravity
0.55
Max. Voltage
240 V
Switch Function
Selectable
Float Material
316 Stainless Steel
Mounting
Vertical Open Tank
Float Switch Contact Form
SPST
Float Switch Float Material
Stainless Steel
Voltage Rating - Maximum
120 V AC, 240 V AC
Electrical Connection
Pre-Wired Cable
Operating Temperature - Maximum
392 Degrees F
Product Type
Closed Liquid 2-Level Switch
Mounting Style
Vertical
Proof Pressure
200 psi
Current Rating - Maximum
0.5 A
Minimum Media Specific Gravity
0.63
Switch Structure
SPST

Description

Multi-Level Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 2 in NPT, Max. Pressure 200 psi, VA Rating 60, Operating Temp. Range 392 Degrees F Max, Overall Length 46 in, Float Material 316 Stainless Steel, Float Length 2.1 in, Float Dia. 2.13 in, Stem Material 316 Stainless Steel, Stem Length Adjustable, Width 43.19 in, Contact Form SPST, Max. Current 0.5 A, Max. Voltage 240 V, Body Material Stainless Steel, Conduit Size 2 in
