  9. Mini-size flow switch, brass upper and lower body, 2" NPT, brass tee.

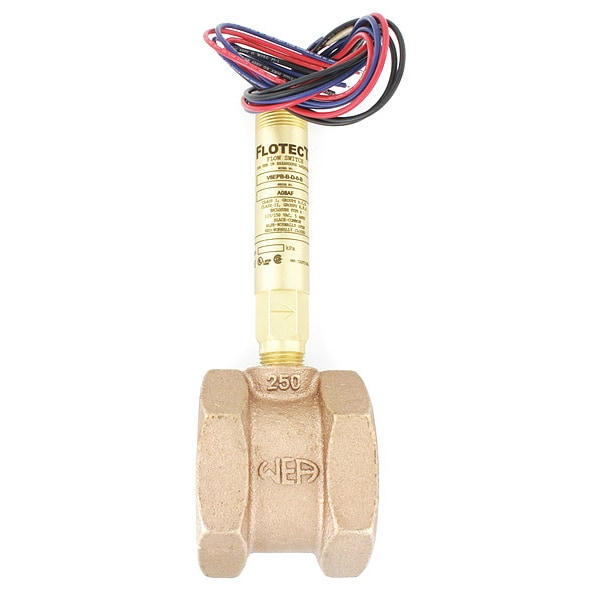

Dwyer Instruments Mini-size flow switch, brass upper and lower body, 2" NPT, brass tee. V6EPB-B-D-6-B - main

Mini-size flow switch, brass upper and lower body, 2" NPT, brass tee.

  • Mfr # V6EPB-B-D-6-B

  • Zoro # G0507718

product price: $762.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Brass
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
2 in
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-D-6-B
Zoro #
G0507718
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
2 in
Max. Duct Size (In.)
2 in
Connection Size (In.)
2 FNPT
Overall Width
3.6 in
Overall Height
4.8 in
Overall Length
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Brass
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
For Use With
Liquids or Gases
Max. Pressure (PSI)
250 psi
Body Material
Brass
Application
Coolant Loops, Other
Max. Ambient Temp. (F)
167 Degrees F
Min. Fluid Temp. (F)
-4 Degrees F
Phase
Single
Min. Ambient Temp. (F)
-4 Degrees
Compliance
CSA, UL
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Flow Rate
10 gpm
Hz
50/60
Switch Type
DPDT
Contact Rating
5A at 125/250V AC
Max. Fluid Temp. (F)
220 Degrees F
Material of Construction
Brass
Media Temperature - Minimum
-4 Degrees F
Set Point Configuration
Adjustable
Frequency
50 Hz, 60 Hz
Ambient Temperature - Maximum
167 Degrees F
Flow Switch Type
Paddle
Ambient Temperature - Minimum
-4 Degrees F
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Switch Position
Normally Closed, Normally Open
Contact Rating (AC)
5 A @ 125/250V
Switch Enclosure
NEMA 4
Contact Rating (DC)
15 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Media Temperature - Maximum
220 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 15 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
