Flomec

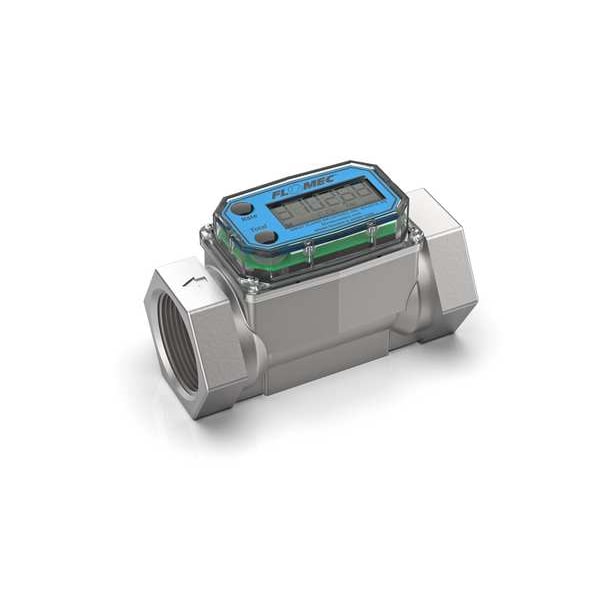

Electronic Flowmeter, 1 1/2", FNPT, 4.5" L

product price: $1,284.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Stainless Steel
  • Type Turbine
  • For Pipe Size 1 1/2 in
  • Flow Material Chemicals, Corrosive Fluids, Fuels, Solvents, Water, Water-Like Liquids
  • Connection Size 1 1/2 in
See all product information

Product Information

  • Brand Flomec
  • MFR # G2S15NQ9GMB
  • Zoro # G100690085
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 1/2 in
Connection Size 1 1/2 in
Width (In.) 2 7/10 in
Length (In.) 5 3/10 in
Height (In.) 3 8/25 in
Overall Length 5.3 in
Overall Height 3.3 in
Manufacturer Warranty Length 1 yr
Overall Width 2.7 in

Details

Item Electronic Flowmeter
Housing Material Stainless Steel
Type Turbine
Flow Material Chemicals, Corrosive Fluids, Fuels, Solvents, Water, Water-Like Liquids
Connection Type FNPT
Max. Pressure 1,500 psi
Wetted Materials 316 Stainless Steel, Alumina Ceramic, PVDF, Stainless Steel, Tungsten Carbide
Max. Viscosity 20 cps
Frequency Range (Hz) 36 to 360
Flow Range 10 to 100 gpm
Fluid Temp. Range 14 Degrees to 140 Degrees F
Flow Range (GPM) 10 to 100
Shaft Material Tungsten Carbide
Flow Range @ GPH 600 to 6000
Display Units gal
Sensor Type Turbine
Flow Range (LPM) 38 to 380
Power Requirement 2-AAA Alkaline Batteries
Accuracy (%) +/-0.75
Display Type Digital
Output Type 4-20 mA
Standards ATEX, CE Certified, FM Approved, IECE
Rotor Type PVDF Turbine
Wetted Material 316 Stainless Steel, Alumina Ceramic, PVDF, Tungsten Carbide
O-Ring Material 316 Stainless Steel
Frequency - Minimum 36 Hz
Compatible Flow Material Chemicals, Fuels, Water
Media Temperature - Minimum 0 Degrees F
Frequency - Maximum 360 Hz
Accuracy +/-0.75%
Mounting Orientation Universal
Flow Rate - Minimum 100 gpm
Media Temperature - Maximum 140 Degrees F
Operating Pressure - Maximum 1,500 psi
Flowmeter Type Electromagnetic
Flow Rate - Maximum 150 gpm
Includes Totalizer Yes
Product Type Industrial Grade Electronic Meter
Viscosity - Maximum 100 cps
Rotor Material PVDF
Unit Of Measure Gallons, Liters

Description

Electronic Flowmeter, Product Type Industrial Grade Electronic Meter, Flowmeter Type Electromagnetic, Accuracy +/-0.75 Percent, Connection Size 1 1/2 in, Connection Type FNPT, Compatible Flow Material Chemicals, Fuels, Water, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 0 Degrees F, Viscosity - Maximum 100 cps, Housing Material Stainless Steel, Rotor Material PVDF, O-Ring Material 316 Stainless Steel, Shaft Material Tungsten Carbide
