Shop DWYER INSTRUMENTS

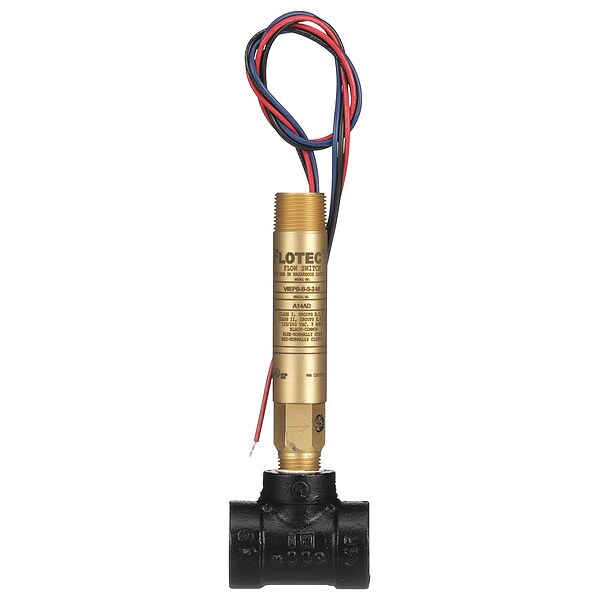

Mini-size flow switch, brass upper and lower body, 3/4" NPT, iron tee.

  • Mfr # V6EPB-B-S-2-MI

  • Zoro # G0507422

product price:  $315.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Brass
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
3/4 in
Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V6EPB-B-S-2-MI
Zoro #
G0507422
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
3/4 in
Connection Size (In.)
3/4 FNPT
Max. Duct Size (In.)
3/4 in
Overall Length
3.6 in
Overall Height
4.8 in
Overall Width
3.6 in
Wire Rope Length
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Brass
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Max. Ambient Temp. (F)
167 Degrees F
Switch Type
SPDT
Material of Construction
Brass
Max. Fluid Temp. (F)
220 Degrees F
Phase
Single
Flow Rate
2 gpm
Compliance
CSA, UL
Hz
50/60
For Use With
Liquids or Gases
Min. Fluid Temp. (F)
-4 Degrees F
Contact Rating
5A at 125/250V AC
Min. Ambient Temp. (F)
-4 Degrees
Application
Coolant Loops, Other
Max. Pressure (PSI)
1,000 psi
Body Material
Brass
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Contact Rating (DC)
21 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Media Temperature - Maximum
220 Degrees F
Set Point Configuration
Adjustable
Frequency
50 Hz, 60 Hz
Ambient Temperature - Maximum
167 Degrees F
Switch Enclosure
NEMA 4
Switch Position
Normally Closed, Normally Open
Media Temperature - Minimum
-4 Degrees F
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Flow Switch Type
Paddle
Contact Rating (AC)
5 A @ 125/250V
Ambient Temperature - Minimum
-4 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 3/4 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 21 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
