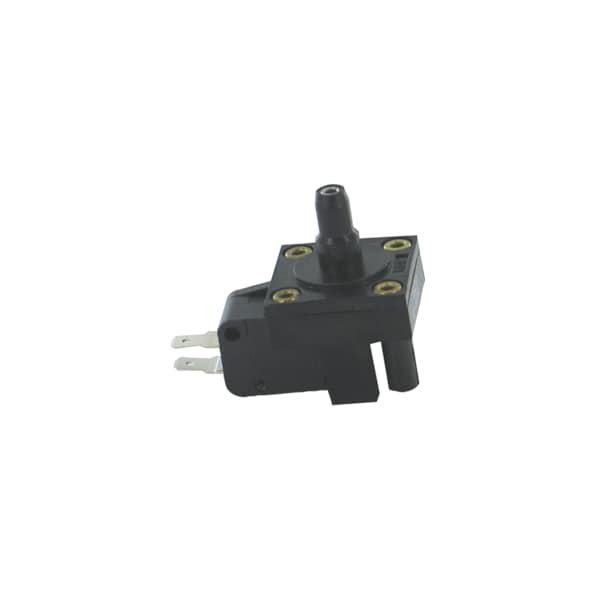

Mini Vaccuum Switch, Vac Sw 38 In 14 Port
- Mfr # MVS-1
- Zoro # G107149128
product price:Â
$
35.59
/ea
Key Features
Process Connections
Models MVS-1 to MVS-3: Smooth port 0.25" diameter; Models MVS-4 to MVS-6: 1/8" male NPT.
Wetted Materials
Housing: polycarbonate; Diaphragm: polyurethane.
Agency Approvals
cULus.
Mounting
Use #2 screws through eyelets.
Service
Air or compatible fluids on "high side".
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MVS-1
- Zoro #
- G107149128
- UPC #
- -
- Country of Origin
- United States
Details
- Process Connections
- Models MVS-1 to MVS-3: Smooth port 0.25" diameter; Models MVS-4 to MVS-6: 1/8" male NPT.
- Wetted Materials
- Housing: polycarbonate; Diaphragm: polyurethane.
- Agency Approvals
- cULus.
- Mounting
- Use #2 screws through eyelets.
- Service
- Air or compatible fluids on "high side".
- Switch Type
- SPDT normally open or normally closed.
- Temperature Limits
- 40 to 150°F (4 to 66°C).
- Repeatability
- ±20%.
- Electrical Connections
- Terminals - 0.187" x 0.20: spade for use with quick disconnects.
- Pressure Limits
- Up to maximum range.
- Electrical Rating
- Range 3 to 8" w.c.: 3 A, 125/250 VAC; Range 9 to 80" w.c.: 10 A, 125/250 VAC; Range 81 to 330" w.c.: 15 A, 125/250 VAC.
Description
Miniature vacuum switch, min. set point 3" w.c. (8 mbar), max. set point 8" w.c. (20 mbar), 1/4" smooth port process connection.
