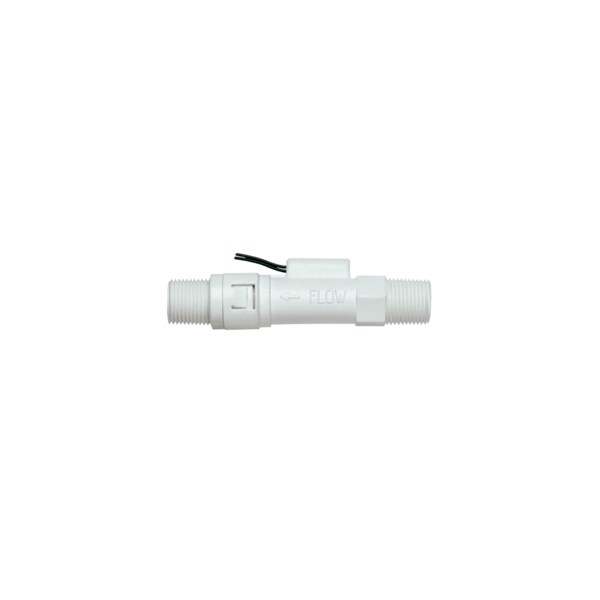

Polypropylene flow switch, actuation set point 2.0 GPM 7.57 LPM, 3/8in NPT.
Mfr # P3-35
Zoro # G810389200
product price:Â
$
164.99
/ea
Free Shipping & Returns
Key Features
Temperature Limits
0 to 212°F (-18 to 100°C).
Service
Compatible liquids.
Mounting Orientation
Any position. Set points shown are based on vertical, inlet down position.
Switch Type
SPST, N.O.
Pressure Limits
125 psig (8.6 bar) @ 70°F (21°C); 50 psig (3.4 bar) @ 212°F (100°C).
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- P3-35
- Zoro #
- G810389200
- UPC #
- -
- Country of Origin
- United States
- Temperature Limits
- 0 to 212°F (-18 to 100°C).
- Service
- Compatible liquids.
- Mounting Orientation
- Any position. Set points shown are based on vertical, inlet down position.
- Switch Type
- SPST, N.O.
- Pressure Limits
- 125 psig (8.6 bar) @ 70°F (21°C); 50 psig (3.4 bar) @ 212°F (100°C).
- Accuracy
- 20% of set point.
- Electrical Rating
- .08 A @ 120 VAC.
- Features
- Piston design incorporates a hermetically sealed SPST magnetic reed switch; Easy integration to existing piping with a variety of fitting options; Selectable shut off valve will stop line flow when the adapter is removed from the switch; Economical design
- Wetted Materials
- Housing: Polypropylene; Piston: PPS composite; Spring: 316SS; O-ring: Fluorocarbon.
- Process Connection
- 3/8" male NPT or 1/4" quick disconnect.
Description
Polypropylene flow switch, actuation set point 2.0 GPM 7.57 LPM, 3/8in NPT.
