Shop DWYER INSTRUMENTS

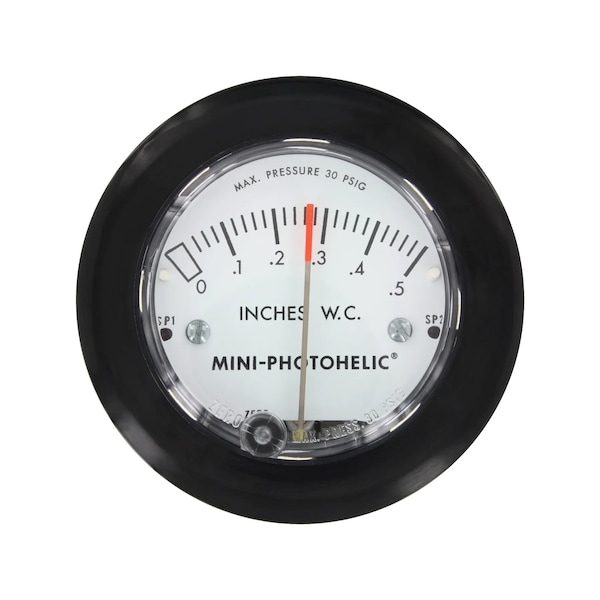

Pressure Switch, SPDT, 1/8" MNPT, 0 to 1.0 in H2O Range

  • Mfr # MP-001

  • Zoro # G407143352

product price:
$
532.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT
Pressure Connection Type
1/8" MNPT
Range
0 to 1.0 in H2O
Standards
CE, cULus
Accuracy
±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MP-001
Zoro #
G407143352
UPC #
-
Country of Origin
United States
Item
Pressure Switch
Contact Form
SPDT
Pressure Connection Type
1/8" MNPT
Range
0 to 1.0 in H2O
Standards
CE, cULus
Accuracy
±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
Features
Gage reading unaffected by switch operation and will continue to read pressure even during power loss; Visible switch status LED provides indication of set point switching state; Compact design but with the power of larger devices can meet the same application specifications
Temperature Limits
20 to 120°F (-6.7 to 49°C).
Power Requirements
24 VDC / 24 VAC 50/60 Hz 4 W.
Pressure Limits
30 psig (2.067 bar).
Set Point Adjustment
Push buttons.
Standard Accessories
(2) mounting screws, (1) .050" hex allen wrench.
Agency Approvals
CE, cULus.
Mounting Orientation
Gage face in vertical position.
Switch Type
(2) SPDT relays.
Process Connections
Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).
Service
Air and non-combustible, compatible gases.

Description

Differential pressure switch/gage, range 0-1.0" water.
