  13. Pressure Switch, SPDT, 1/8" MNPT, 0 to 5.0 in H2O Range

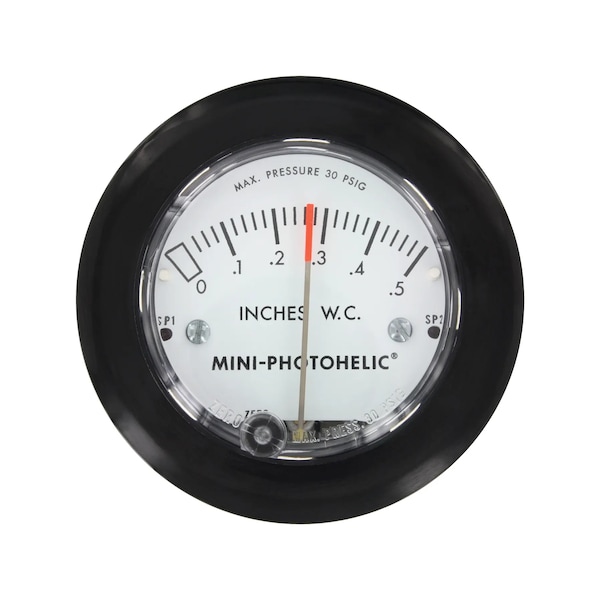

Dwyer Instruments Pressure Switch, SPDT, 1/8" MNPT, 0 to 5.0 in H2O Range MP-005 - main

Pressure Switch, SPDT, 1/8" MNPT, 0 to 5.0 in H2O Range

  • Mfr # MP-005

  • Zoro # G107143485

product price: $584.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT
Pressure Connection Type
1/8" MNPT
Range
0 to 5.0 in H2O
Standards
CE, cULus
Accuracy
±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MP-005
Zoro #
G107143485
UPC #
-
Country of Origin
United States

Dimensions

Size
4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) diameter.

Details

Item
Pressure Switch
Contact Form
SPDT
Pressure Connection Type
1/8" MNPT
Range
0 to 5.0 in H2O
Standards
CE, cULus
Accuracy
±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
Features
Gage reading unaffected by switch operation and will continue to read pressure even during power loss; Visible switch status LED provides indication of set point switching state; Compact design but with the power of larger devices can meet the same application specifications
Pressure Limits
30 psig (2.067 bar).
Switch Type
(2) SPDT relays.
Standard Accessories
(2) mounting screws, (1) .050" hex allen wrench.
Process Connections
Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).
Mounting Orientation
Gage face in vertical position.
Temperature Limits
20 to 120°F (-6.7 to 49°C).
Power Requirements
24 VDC / 24 VAC 50/60 Hz 4 W.
Service
Air and non-combustible, compatible gases.
Set Point Adjustment
Push buttons.
Agency Approvals
CE, cULus.

Description

Differential pressure switch/gage, range 0-5.0" water.
