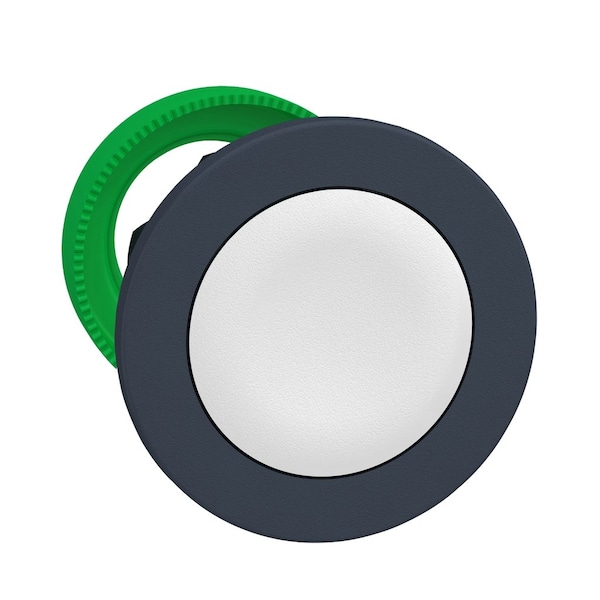

Schneider Electric Antimicrobial Flush mounted push button head, Harmony XB5, plastic, white, 30mm, spring return, unmarked ZB5FA1 - main

Antimicrobial Flush mounted push button head, Harmony XB5, plastic, white, 30mm, spring return, unmarked

  • Mfr # ZB5FA1

  • Zoro # G7655613

product price:  $11.39
/ea

Key Features

Type of Operator
white flush, unmarked
Standards
UL || CSA
Height
37 mm
Depth
30 mm
Width
37 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB5FA1
Zoro #
G7655613
UPC #
-
Country of Origin
France

Dimensions

Height
37 mm
Depth
30 mm
Width
37 mm
Mounting Diameter
30.5 mm

Details

Item
Push Button White Cap
Type of Operator
white flush, unmarked
Standards
UL || CSA
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653.
Type Of Operator
spring return
Header
built-in-flush
Bezel Material
dark grey plastic
Ambient Air Temperature For Operation
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Compatibility
ZBYF..., ZBZF32, ZBZF33, ZB5AZ
Shape of Signaling Unit Head
round
Ambient Air Temperature For Storage
-40-70°C
Device Presentation
basic element
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ik Degree of Protection
IK03 conforming to IEC 50102
Range of Product
Harmony XB5
Protective Treatment
TH
Mechanical Durability
10000000 cycles
Product or Component Type
head for non-illuminated push-button
Electrical Composition Code
C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6, 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Overvoltage Category
class II IEC 60536
Device Short Name
ZB5

Description

Push Button White Cap
