Shop DWYER INSTRUMENTS

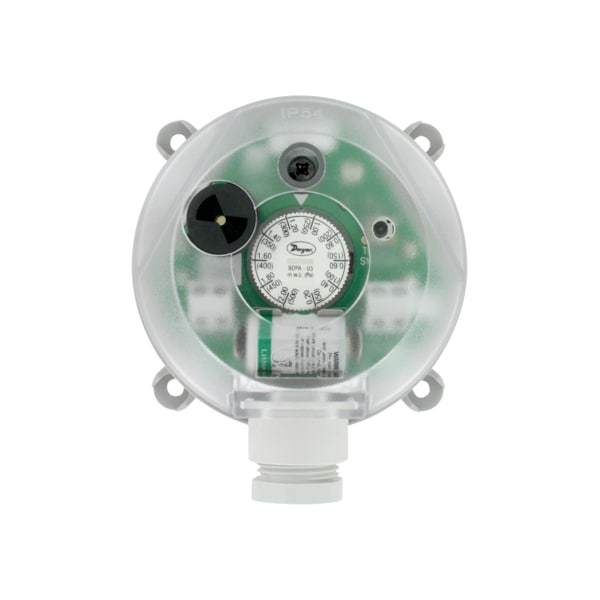

Pressure Switch, Standard, SPDT, 0.08 to 1.20 in H2O Range, Polystyrene

  • Mfr # BDPA-08-2-N

  • Zoro # G207143453

product price:
$
143.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Range
0.08 to 1.20 in H2O
Housing Material
Polystyrene
Standards
CE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BDPA-08-2-N
Zoro #
G207143453
UPC #
-
Country of Origin
Germany
Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Range
0.08 to 1.20 in H2O
Housing Material
Polystyrene
Standards
CE
Wetted Materials
Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene.
Features
Adjustment knob changes switching pressure easily with a pressure gage reducing components for application; Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring; Relay contact allows simple integration with DDC or building systems
Power Requirements
16 to 30 VDC, 18 to 30 VAC or 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost.
Temperature Limits
Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Service
Air and noncombustible, compatible gases.
Switch Type
SPDT.
Alarm Acknowledge
Button press.
Mounting Orientation
Vertically, with pressure connections pointing downwards.
Alarm Indication
Red LED and audible alarm.
Alarm Level
Approximately 90 db at 4" (10 cm).
Process Connections
5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.
Battery Life
Approximately 1.5 years with 3.6 V/1.2 Ah.
Repeatability
±15% FS.
Agency Approvals
CE
Pressure Limits
Max. operating pressure: 40" w.c. (10 kPa) for all pressure ranges.

Description

Adjustable differential pressure alarm, range .08-1.20" w.c., M20 connection.
