Shop DWYER INSTRUMENTS

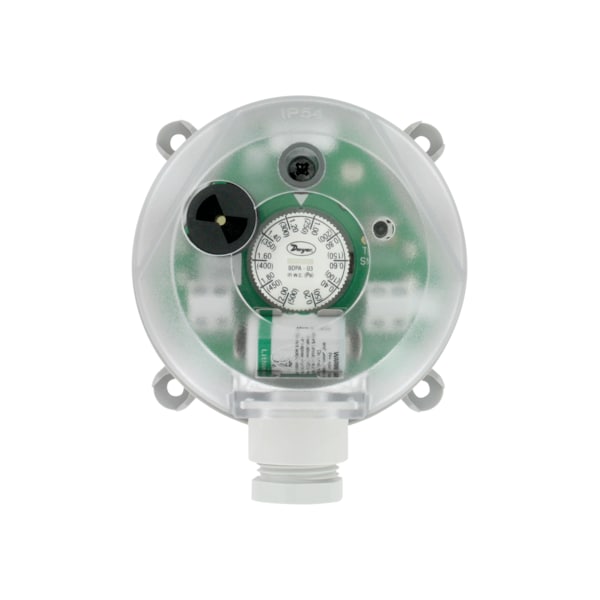

Pressure Switch, Standard, SPDT, 0.20 to 2.00 in H2O Range, Polystyrene

  • Mfr # BDPA-03-2-N

  • Zoro # G007143486

product price:
$
153.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
5/16" Barbed
Range
.20-2.00" w.c.
Housing Material
Polystyrene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BDPA-03-2-N
Zoro #
G007143486
UPC #
-
Country of Origin
Germany

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
5/16" Barbed
Range
.20-2.00" w.c.
Housing Material
Polystyrene
Factory On Setting
0.2"wc
Factory Off Setting
2"wc
Standards
CE
Features
Adjustment knob changes switching pressure easily with a pressure gage reducing components for application; Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring; Relay contact allows simple integration with DDC or building systems
Wetted Materials
Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene.
Alarm Indication
Red LED and audible alarm.
Alarm Level
Approximately 90 db at 4" (10 cm).
Switch Type
SPDT.
Agency Approvals
CE
Alarm Acknowledge
Button press.
Repeatability
±15% FS.
Process Connections
5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.
Service
Air and noncombustible, compatible gases.
Temperature Limits
Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Battery Life
Approximately 1.5 years with 3.6 V/1.2 Ah.
Mounting Orientation
Vertically, with pressure connections pointing downwards.
Power Requirements
16 to 30 VDC, 18 to 30 VAC or 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost.
Pressure Limits
Max. operating pressure: 40" w.c. (10 kPa) for all pressure ranges.

Description

Adjustable differential pressure alarm, range .20-2.00" w.c., M20 connection.
