Shop SCHNEIDER ELECTRIC

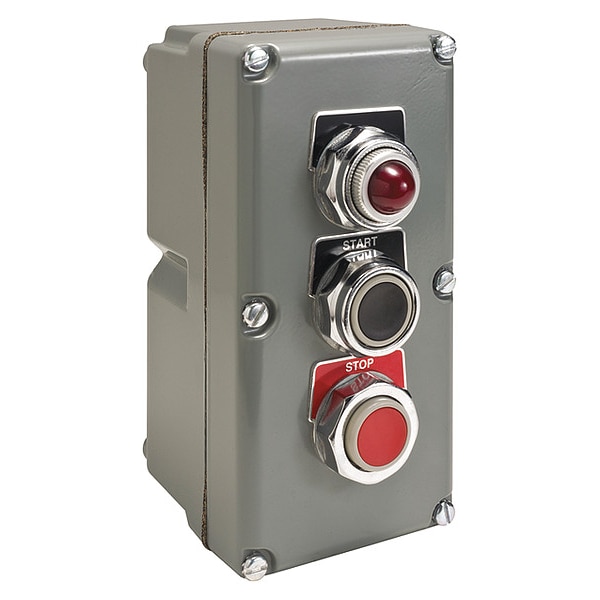

Control Station, DeadEnd, 2 Button, Black/Red, 1 Light

  • Mfr # 9001KYK317

  • Zoro # G3456766

product price:  $443.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
1
Type of Operator
Push Button
Contact Form
1NO/1NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001KYK317
Zoro #
G3456766
UPC #
785901846109
Country of Origin
Korea, Republic of

Dimensions

Size
30 mm
Overall Depth
3.53 in
Hub Size - Maximum
3/4 in
Panel Cutout Diameter
30 mm
Overall Width
3.62 in
Overall Height
7 in
Manufacturer Warranty Length
18 mo

Details

Item
Control Station
Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
1
Type of Operator
Push Button
Contact Form
1NO/1NC
Number of Operators
2
NEMA Rating
13, 3, 4
Hub Style
Dead-End
Series
9001K
Contact Rating
10A
Standards
UL Listed
For Use With
indoor/outdoor
Action
Momentary/Momentary
Hub
3/4 in NPT
Enclosure Material
Zinc
Operator Color
Black, Red
Mounting Style
Surface
Terminal Connection
screw-clamp terminals
Mounting
Surface
IP Rating
IP66
Enclosure Color
Gray
Number of Speeds
1
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
Pilot Light Color
Red
Product Type
Control Station
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
13, 3, 4
Operating Temperature - Minimum
-13 Degrees F
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Operator Configuration
(2) Push Buttons

Description

Control Station, Number of Operators 2, Number of Pilot Lights 1, Size 30 mm, Legend Start/Stop, Type of Operator Push Button, Action Momentary/Momentary, Operator Color Black, Red, Contact Form 1NO/1NC, NEMA Rating 13, 3, 4, Contact Rating 10A, IP Rating IP66, Mounting Surface, Hub 3/4 in NPT, Enclosure Material Zinc, Enclosure Color Gray, Standards UL Listed
