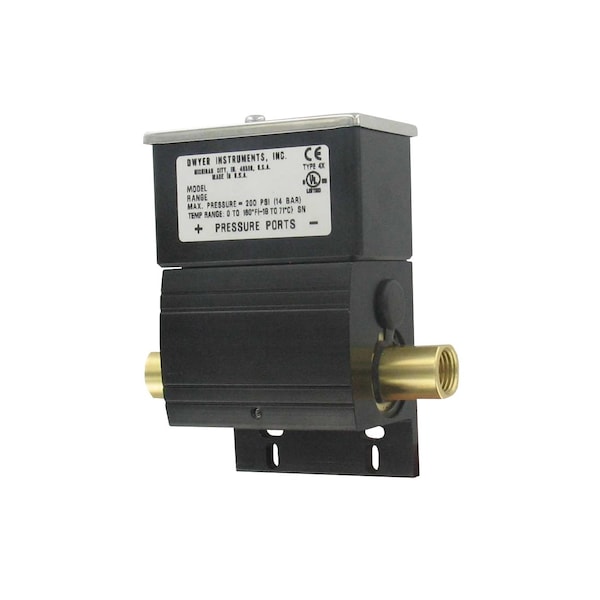

Pressure Switch, Standard, SPDT, 1/4" FNPT, 10 to 25 psi Range, Brass
Mfr # DXW-11-153-2
Zoro # G907143432
product price:Â
$
152.99
/ea
Free Shipping & Returns
Key Features
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4" NPT
Range
10 to 25 psi
Housing Material
Brass
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DXW-11-153-2
- Zoro #
- G907143432
- UPC #
- -
- Country of Origin
- United States
Details
- Item
- Pressure Switch
- Action
- Standard
- Contact Form
- SPDT
- Pressure Connection Type
- 1/4" NPT
- Range
- 10 to 25 psi
- Housing Material
- Brass
- Factory On Setting
- 10 psi
- Factory Off Setting
- 25 psi
- Standards
- CE, cULus
- Wetted Materials
- Connection: Brass; Diaphragm: Fluoroelastomer.
- Service
- Compatible gases and liquids.
- Set Point Adjustment
- External screw.
- Temperature Limits
- 30 to 140°F (-1 to 60°C).
- Mounting Orientation
- Ports on horizontal plane, ±10°.
- Pressure Limits
- Maximum static pressure: 200 psig (13.8 bar); maximum differential pressure: 1.25 x model's highest set point.
- Repeatability
- ±2% of full range.
- Agency Approvals
- CE, cULus.
- Conduit Connection
- 0.871" diameter hole for 1/2" conduit fitting.
- Switch Type
- SPDT snap switch.
Description
Differential pressure switch, brass and fluoroelastomer wetted materials, NEMA 4X, 1/4" NPT connections, SPDT, range 10 to 25 psi.
