Shop DWYER INSTRUMENTS

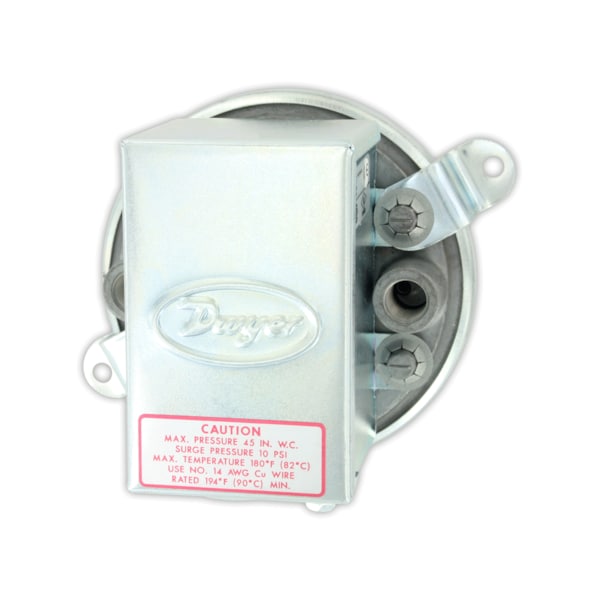

Pressure Switch, Standard, SPDT, 1/8" FNPT, 1.40 to 5.5 in H2O Range

  • Mfr # 1900-5-MR

  • Zoro # G707143359

product price:
$
131.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
1.40 to 5.5"wc
Factory On Setting
1.4"wc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1900-5-MR
Zoro #
G707143359
UPC #
-
Country of Origin
United States

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
1.40 to 5.5"wc
Factory On Setting
1.4"wc
Factory Off Setting
5.5"wc
Standards
CE, CSA, FM, UL
Features
Compact size and repeatability, provides a high-value switch for many industrial and OEM applications; Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low pressure switch; Range screw protected inside enclosure provides simplifies making adjustments but prevents tampering
Switch Type
Single-pole double-throw (SPDT).
Process Connections
1/8" female NPT.
Service
Air and non-combustible, compatible gases.
Pressure Limits
45" w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge.
Temperature Limits
-30 to 180°F (-34 to 82.2°C).
Mounting Orientation
Diaphragm in vertical position. Consult factory for other position orientations.
Repeatability
±3%.
Agency Approvals
CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.
Set Point Adjustment
Screw type inside conduit enclosure.

Description

Differential pressure switch, range 1.40-5.5" w.c., approx. deadband @ min. set point 0.30, approx. deadband @ max. set point 0.30, with manual reset option.
