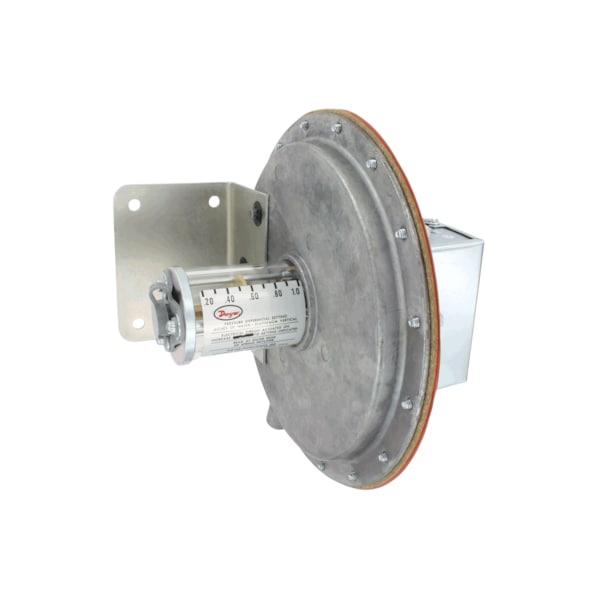

Pressure Switch, Standard, SPDT, 1/8" FNPT, 2.0 to 6.0 in H2O Range

  • Mfr # 1638-5
  • Zoro # G207143439
product price:
$
602.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
2.0-6.0" w.c.
Factory On Setting
2"wc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1638-5
Zoro #
G207143439
UPC #
-
Country of Origin
United States

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
2.0-6.0" w.c.
Factory On Setting
2"wc
Factory Off Setting
6"wc
Standards
CSA, FM, UL
Features
Visible set point indicator simplifies operation and trouble shooting; Large diaphragm provides low range accuracy providing precise control; Current loads of up to 15 amps supports most small electrical loads supporting a broader range of HVAC and Process applications without the need for additional relays and components
Agency Approvals
CSA, FM, UL.
Switch Type
SPDT.
Process Connections
1/8" female NPT.
Pressure Limits
10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.
Repeatability
±1%.
Mounting Orientation
Diaphragm in vertical position. Consult factory for other position orientations.
Service
Air and non-combustible, compatible gases.
Temperature Limits
-30 to 110°F (-34.4 to 43.3°C).
Set Point Adjustment
Screw type with enclosed scale.

Description

Large diaphragm pressure switch, range 2.0-6.0" w.c., approx deadband @ 0.07 min. set point, 0.25 max. set point.
