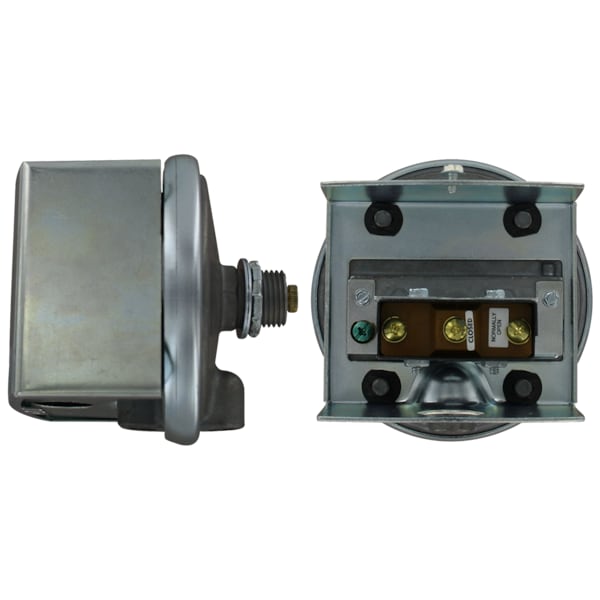

Pressure Switch, Standard, SPDT, 1/8" FNPT, 0.5 to 2.0 in H2O Range

  • Mfr # 1823-2
  • Zoro # G807143389
product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
0.5-2.0" w.c.
Factory On Setting
0.5"wc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1823-2
Zoro #
G807143389
UPC #
-
Country of Origin
United States

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
0.5-2.0" w.c.
Factory On Setting
0.5"wc
Factory Off Setting
2"wc
Standards
CE, CSA, FM, UL
Features
Compact size and repeatability provide a high-value switch for many industrial applications; Designed for panel and wall mounting to easily meet mounting requirements in most industrial settings; Pressure ranges from 0.07 in w.c. to 85 in w.c. make this switch suitable for a wide range of applications
Repeatability
±2%.
Set Point Adjustment
Screw type inside mounting spud.
Process Connections
1/8" female NPT.
Mounting Orientation
Diaphragm in vertical position. Consult factory for other position orientations.
Temperature Limits
-30 to 180°F (-34 to 82.2°C). 1823-00, -20 to 180°F (-28.9 to 82.2°C).
Pressure Limits
10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.
Agency Approvals
CE, CSA, FM, UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals.
Service
Air and non-combustible, compatible gases.
Switch Type
Single-pole double-throw (SPDT).

Description

Differential pressure switch, range 0.5-2.0" w.c., approx. deadband @ min. set point 0.10, approx. deadband @ max. set point 0.12.
