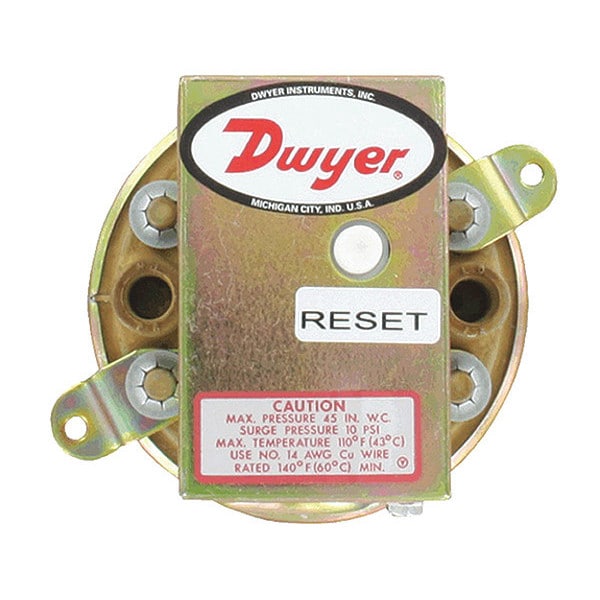

Dwyer Instruments Pressure Switch, Standard, SPDT, 1/8" FNPT, 3.0 to 11.75 in H2O Range 1900-10-MR - main

Pressure Switch, Standard, SPDT, 1/8" FNPT, 3.0 to 11.75 in H2O Range

  • Mfr # 1900-10-MR

  • Zoro # G0562576

CAD Available
product price:  $135.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
3 to 11"wc
Factory On Setting
3"wc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1900-10-MR
Zoro #
G0562576
UPC #
-
Country of Origin
United States

Dimensions

Mounting Hole Diameter
3/16 in
Sample Line Connection Size
1/8 in
Overall Diameter
3 1/2 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
3 to 11"wc
Factory On Setting
3"wc
Factory Off Setting
11"wc
Standards
CE, CSA, FM, RoHS, UL Listed
Features
Compact size and repeatability, provides a high-value switch for many industrial and OEM applications; Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low pressure switch; Range screw protected inside enclosure provides simplifies making adjustments but prevents tampering
Application
Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control
Electrical Connection
Screw Terminals
Process Connection
1/8" female NPT.
Mounting Orientation
Vertical
Reset Type
Manual Reset
Sample Line Connector Type
NPT
Minimum Operating Temperature
-30 Degrees F
Weight
1 lb
Mounting Hole Center to Center Distance
4 3/16 in
Product Type
Differential Pressure Switch
Pressure Setpoint Type
Adjustable
Maximum Operating Temperature
180 Degrees F
Maximum Differential Pressure Setting
11 in wc
Pressure Type
Differential
Minimum Pressure Setting
3 in wc
Maximum Pressure Setting
11.75 in wc
Maximum Pressure Rating
45 in wc
Agency Approvals
CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.
Switch Type
Single-pole double-throw (SPDT).
Service
Air and non-combustible, compatible gases.
Set Point Adjustment
Screw type inside conduit enclosure.
Repeatability
±3%.
Temperature Limits
-30 to 180°F (-34 to 82.2°C).
CAD Available
Yes

Description

Manual Reset Pressure Switch, Application Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 120 to 480 V AC, 60 Hz Resistive, Derate to 10 A for Operation at High Cycle Rates, Maximum Differential Pressure Setting 11 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 45 in wc, Maximum Pressure Setting 11.75 in wc
