  13. Pressure Switch, Standard, SPDT, 1/8" FNPT, 4 to 20 in H2O Range

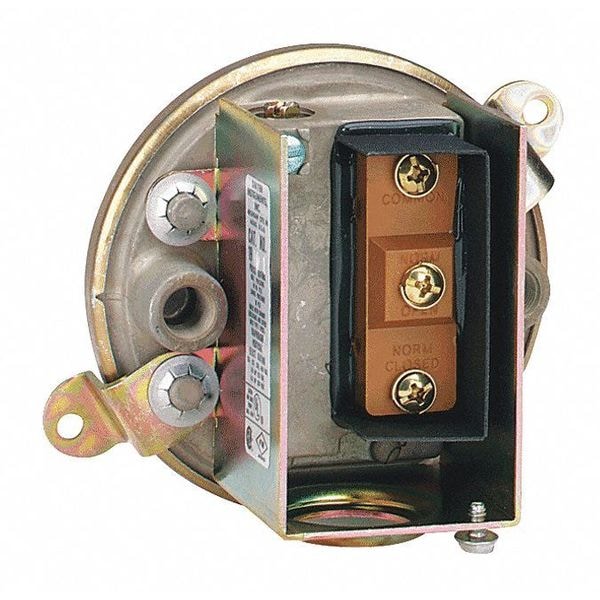

Dwyer Instruments Pressure Switch, Standard, SPDT, 1/8" FNPT, 4 to 20 in H2O Range 1910-20 - main

Pressure Switch, Standard, SPDT, 1/8" FNPT, 4 to 20 in H2O Range

  • Mfr # 1910-20

  • Zoro # G0562585

product price: $91.59
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8" FNPT
Range
4 to 20 in H2O
Standards
CE Listed, CSA, FM, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1910-20
Zoro #
G0562585
UPC #
-
Country of Origin
United States

Dimensions

Sample Line Connection Size
1/8 in
Mounting Hole Diameter
3/16 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8" FNPT
Range
4 to 20 in H2O
Standards
CE Listed, CSA, FM, UL Listed
Process Connection
1/8" female NPT.
Application
Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control
Electrical Connection
Screw Terminals
Mounting Orientation
Vertical
Weight
1 lb
Product Type
Differential Pressure Switch
Number of Switches
1
Maximum Operating Temperature
180 Degrees F
Pressure Type
Differential
Maximum Pressure Rating
45 in wc
Sample Line Connector Type
NPT
Mounting Hole Center to Center Distance
6 13/16 in
Minimum Operating Temperature
-30 Degrees F
Pressure Setpoint Type
Adjustable
Maximum Differential Pressure Setting
20 in wc
Input Voltage
120 to 480V AC, 125V AC, 250V AC
Minimum Pressure Setting
4 in wc
Maximum Pressure Setting
20 in wc
Agency Approvals
CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.
Temperature Limits
-30 to 180°F (-34 to 82.2°C).
Set Point Adjustment
Screw type inside conduit enclosure.
Switch Type
Single-pole double-throw (SPDT).
Service
Air and non-combustible, compatible gases.
Repeatability
±3%.

Description

Pressure Switch, Application Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 hp @ 250 V AC, 60 Hz, 15 A @ 120 to 480 V AC, 60 Hz, Resistive 1/8 hp @ 125 V AC, Input Voltage 120 to 480V AC, 125V AC, 250V AC, Maximum Differential Pressure Setting 20 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 45 in wc, Maximum Pressure Setting 20 in wc
