  13. Pressure Switch, Standard, SPDT, 1/8" FNPT, 5 to 44 in H2O Range

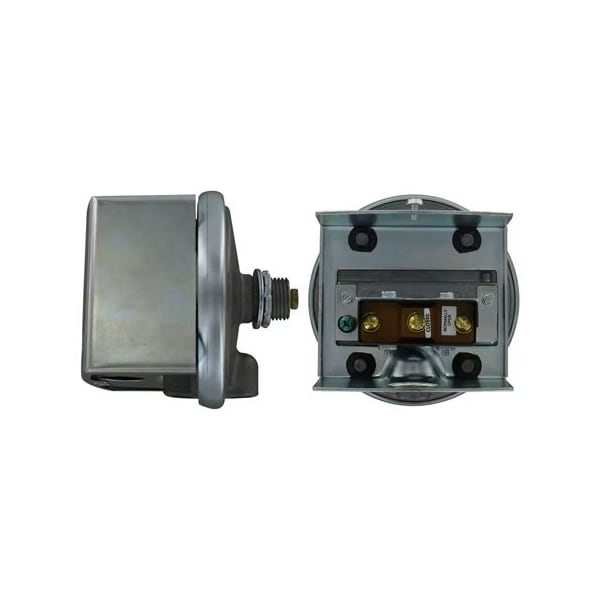

Dwyer Instruments Pressure Switch, Standard, SPDT, 1/8" FNPT, 5 to 44 in H2O Range 1823-40 - main

Pressure Switch, Standard, SPDT, 1/8" FNPT, 5 to 44 in H2O Range

  • Mfr # 1823-40

  • Zoro # G0562567

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8" FNPT
Range
5 to 44 in H2O
Standards
CE, CSA, FM, RoHS, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1823-40
Zoro #
G0562567
UPC #
-
Country of Origin
United States

Dimensions

Mounting Hole Diameter
1/16 in
Sample Line Connection Size
1/8 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8" FNPT
Range
5 to 44 in H2O
Standards
CE, CSA, FM, RoHS, UL Listed
Electrical Connection
Screw Terminals
Features
Compact size and repeatability provide a high-value switch for many industrial applications; Designed for panel and wall mounting to easily meet mounting requirements in most industrial settings; Pressure ranges from 0.07 in w.c. to 85 in w.c. make this switch suitable for a wide range of applications
Process Connection
1/8" female NPT.
Weight
1.45 lb
Mounting Orientation
Vertical
Pressure Setpoint Type
Adjustable
Input Voltage
120 to 480V AC
Housing Type
Conduit Box
Maximum Differential Pressure Setting
44 in wc
Sample Line Connector Type
NPT
Pressure Type
Differential
Mounting Hole Center to Center Distance
1 1/8 in
Maximum Operating Temperature
180 Degrees F
Maximum Pressure Rating
25 psi
Product Type
Pressure Switch
Number of Switches
1
Minimum Operating Temperature
-30 Degrees F
Maximum Pressure Setting
44 in wc
Minimum Pressure Setting
5 in wc
Repeatability
±2%.
Agency Approvals
CE, CSA, FM, UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals.
Temperature Limits
-30 to 180°F (-34 to 82.2°C). 1823-00, -20 to 180°F (-28.9 to 82.2°C).
Switch Type
Single-pole double-throw (SPDT).
Service
Air and non-combustible, compatible gases.
Set Point Adjustment
Screw type inside mounting spud.

Description

Pressure Switch, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 15 A @ 120 to 480V AC, 60 Hz. Resistive 1/8 HP @ 125V AC, 1/4 HP @ 250V AC, 60 Hz. De-Rate to 10 A, Housing Type Conduit Box, Input Voltage 120 to 480V AC, Maximum Differential Pressure Setting 44 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 25 psi, Maximum Pressure Setting 44 in wc, Minimum Differential Pressure Setting 5 in wc
