  13. Pressure Switch, Standard, SPDT, M20 connection, 2 to 10 in H2O Range, Polystyrene

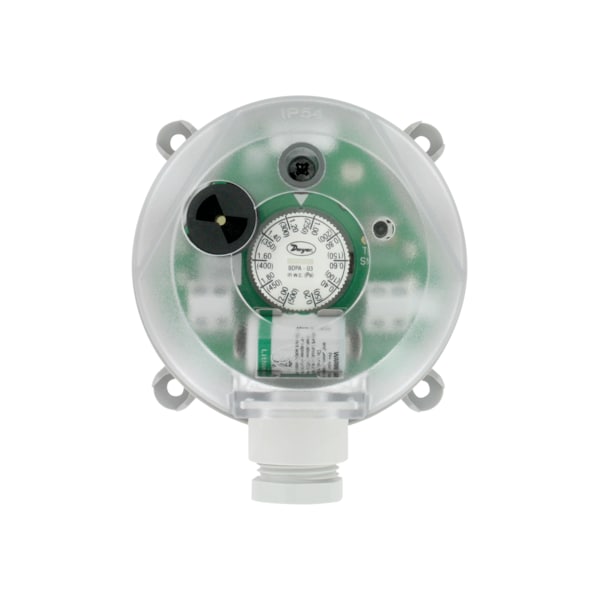

Dwyer Instruments Pressure Switch, Standard, SPDT, M20 connection, 2 to 10 in H2O Range, Polystyrene BDPA-06-2-N - main

Pressure Switch, Standard, SPDT, M20 connection, 2 to 10 in H2O Range, Polystyrene

  • Mfr # BDPA-06-2-N

  • Zoro # G307143476

product price: $144.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
M20 connection
Range
2 to 10 in H2O
Housing Material
Polystyrene
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDPA-06-2-N
Zoro #
G307143476
UPC #
-
Country of Origin
Germany

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
M20 connection
Range
2 to 10 in H2O
Housing Material
Polystyrene
Standards
CE
Wetted Materials
Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene.
Features
Adjustment knob changes switching pressure easily with a pressure gage reducing components for application; Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring; Relay contact allows simple integration with DDC or building systems
Process Connections
5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.
Power Requirements
16 to 30 VDC, 18 to 30 VAC or 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost.
Service
Air and noncombustible, compatible gases.
Mounting Orientation
Vertically, with pressure connections pointing downwards.
Repeatability
±15% FS.
Battery Life
Approximately 1.5 years with 3.6 V/1.2 Ah.
Switch Type
SPDT.
Alarm Acknowledge
Button press.
Pressure Limits
Max. operating pressure: 40" w.c. (10 kPa) for all pressure ranges.
Agency Approvals
CE
Temperature Limits
Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Alarm Indication
Red LED and audible alarm.
Alarm Level
Approximately 90 db at 4" (10 cm).

Description

Adjustable differential pressure alarm, range 2.00-10.00" w.c., M20 connection.
