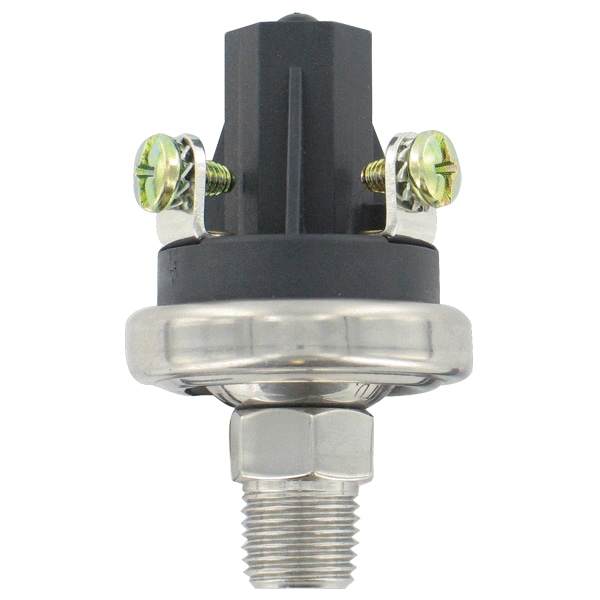

Pressure Switch, Standard, SPST, 1/4" MNPT, 18-8 Stainless Steel
Mfr # A6-253221
Zoro # G707143328
CAD Available
product price: $41.15
/eaKey Features
CAD Drawing
Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4" MNPT
Housing Material
18-8 Stainless Steel
Standards
CE
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A6-253221
Zoro #
G707143328
UPC #
-
Country of Origin
China
Details
Item
Pressure Switch
Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4" MNPT
Housing Material
18-8 Stainless Steel
Standards
CE
Features
High switch cycle means long life for extended duty applications; Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications
Wetted Materials
Base: 304 SS, Diaphragm: polyimide film.
Repeatability
±10% of set point.
Pressure Limits
Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges, 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges, 1250 psi (86.2 bar) for 25-150 psi set point ranges.
Agency Approvals
CE.
Switch Type
1 SPST NO, 1 SPST NC. NO and NC switch independent from each other.
Mounting Orientation
Switch can be installed in any position.
Temperature Limits
-40 to 248°F (-40 to 120°C).
Set Point Adjustment
Screw.
Service
Air, motor oils, transmission oils, jet fuels, and similar hydrocarbon media. (Not for water use).
CAD Available
Yes
