Shop DWYER INSTRUMENTS

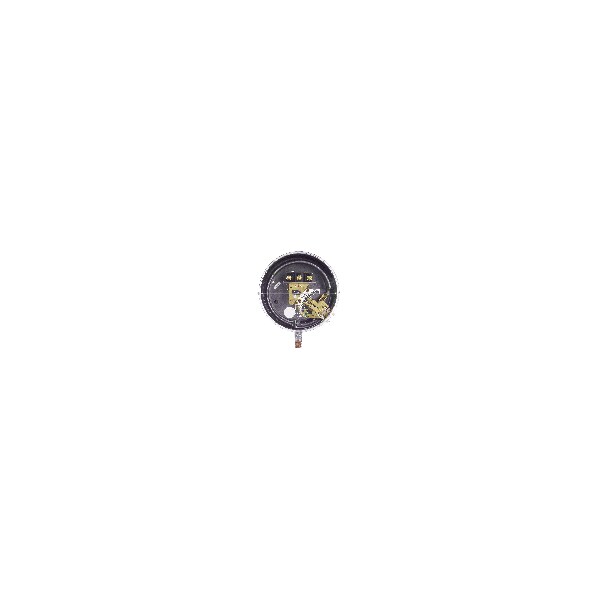

Pressure Switch, Standard, SPST, 1/4" NPT, 50 to 1000 psi Range, Brass

  • Mfr # DA-7021-153-11S
  • Zoro # G110113789
product price:
$
2,029.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4 in MNPT
Range
50 to 1000 psi
Housing Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DA-7021-153-11S
Zoro #
G110113789
UPC #
-
Country of Origin
United States
Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4 in MNPT
Range
50 to 1000 psi
Housing Material
Stainless Steel
Factory On Setting
50 psi
Factory Off Setting
1000 psi
Standards
CSA, FM, UL
Features
Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators; On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location; Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling; External switch setpoint adjustments reduces set-up time; Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs; UL listed, CSA approved many models FM approved to support rigorous process applications and regulations; General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses
Wetted Materials
Brass, 403 SS, or 316 SS.
Agency Approvals
CSA, FM, UL. (Consult factory for FM approval models.)
Pressure Limit
Maximum pressure of the operating range.
Set Point Adjustment
Thumbscrew.
Temperature Limit
180°F (82°C).
Repeatability
±1% of full operating range, ±1.5% on DS-7300 models.
Conduit Connection
General purpose: 1/2" hole for conduit hub. Weatherproof: 1/2" conduit hub. Explosion-proof: 3/4" female NPT.
Mounting Orientation
Vertical.
Switch Type
SPST mercury switch, SPDT mercury switch, SPDT snap switch.

Description

Pressure switch, 403SS Bourdon tube, range 50-1000 psig, 142.5 psig min. deadband.
