  9. Universal head mount temperature transmitter

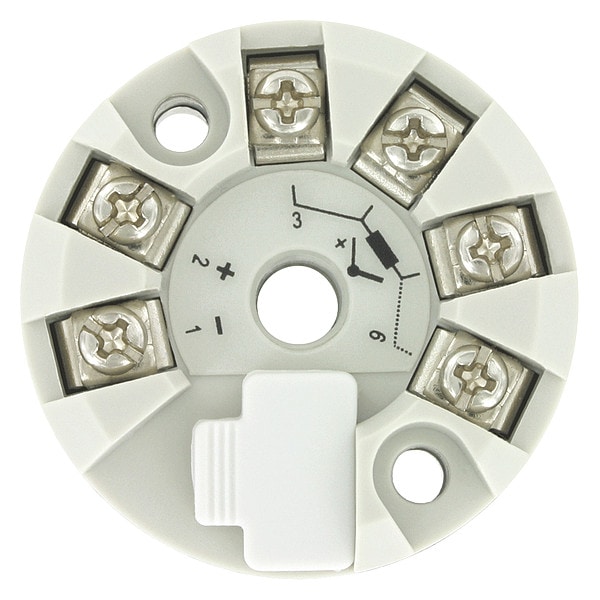

Dwyer Instruments Universal head mount temperature transmitter TBU-00 - main

Universal head mount temperature transmitter

  • Mfr # TBU-00

  • Zoro # G8290478

product price: $182.99
/ea
Free Shipping & Returns

Key Features

Output
4 to 20mA DC
Electrical Connection
Screw Terminals
Temp. Accuracy
+/-1%
Process Connection
1/2 in NPS
Temp. Range
-40 to 185 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TBU-00
Zoro #
G8290478
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Diameter
1.72 in

Details

Item
Temperature Transducer
Output
4 to 20mA DC
Electrical Connection
Screw Terminals
Temp. Accuracy
+/-1%
Process Connection
1/2 in NPS
Temp. Range
-40 to 185 Degrees F
Standards
CE
Humidity Accuracy
+/-2%
Mounting
Surface
Relative Humidity Range
0 to 100%
Features
2 or 3 wire Pt1000 RTD, 2-Wire NTC thermistor; or 0 to 50 mV Voltage Inputs, 2, 3, or 4-Wire Pt100 RTD, Compatible with Type J, K, R, S, T, N, E, and B Thermocouple, Configurable Measurement Range, Standard Temperature Sensor Head Enclosure Mounting
Power Required
10 to 35V DC
Response Time
1.6 sec
Electrical Connections
Screw Terminals
Temperature Accuracy
+/-0.1% Full Scale (Thermocouple), +/-0.13% (RTD), +/-0.3 Degrees C (Thermistor)
Minimum Operating Temperature
-40 Degrees F
Input Type
RTD
Sensing Element Type
Universal
Minimum Sensed Temperature
-40 Degrees F
Maximum Operating Temperature
185 Degrees F
Temperature Sensor
Universal (Thermocouple, RTD, Thermistor)
Output Power
4 to 20mA
Operating Temperature - Minimum
-40 Degrees F
Input Voltage
10 to 35V DC
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Head Mount
Compensated Temperature - Minimum
-40 Degrees F

Description

Temperature Transducer, Minimum Sensed Temperature -40 Degrees F, Temperature Accuracy +/-0.1 Percent Full Scale (Thermocouple), +/-0.13 Percent (RTD), +/-0.3 Degrees C (Thermistor), Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Output 4 to 20mA DC, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-2 Percent, Sensing Element Type Universal
