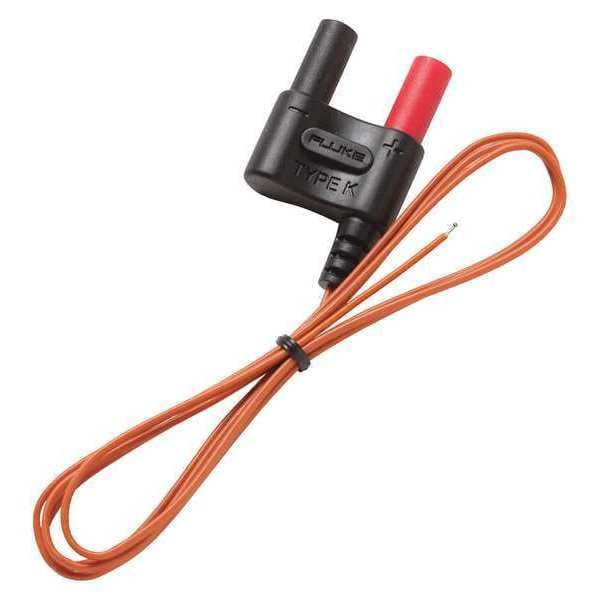

Temperature Probe, Banana Plug, Type K

Mfr # 80BK-A
Zoro # G2213836

77.99

Zoro's best price: not eligible for any other offers or promotions

Key Features

Sensor Type

Thermocouple

Temp. Range (F)

-40 Degrees to 500 Degrees

Temp. Range (C)

-40 Degrees to 260 Degrees

Probe Length

0.16 in

Primary Measuring Element

Thermocouple

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 80BK-A
Zoro #: G2213836
UPC #: 095969561105
Country of Origin: China

Dimensions

Probe Length: 0.16 in
Probe Wire Length: 3 ft
Wire Length: 3 ft.
Manufacturers Warranty Length: 1 yr
Manufacturer Warranty Length: 1 yr
Probe Size: 5/32 in
Cable Length: 3 ft
Probe Diameter: 0.125 in
Probe Tip Diameter: 0.063 in

Details

Item: Bead Wire Temperature Probe
Sensor Type: Thermocouple
Temp. Range (F): -40 Degrees to 500 Degrees
Temp. Range (C): -40 Degrees to 260 Degrees
Primary Measuring Element: Thermocouple
Probe Temp. Measuring Element: K Thermocouple
Probe Connector: Banana Plug
Probe Connection Type: Banana Plug
Accuracy: +/-2.2 Degrees C or 2 % of Reading, Whichever is Greater
Use: Air or Surface
For Use With: DMMs with Temperature Measurement Functions
Probe Material: Insulator = PTFE, Connector = Hytrel
Temperature Measuring Element: K Thermocouple
Process Connection: 1/4 in NPT, Compression Fitting
Includes: Instructions
For Air: Yes
Minimum Temperature C: -40 Degrees C
Connector Type: Banana Plug
Maximum Temperature F: 500 Degrees F
For Surfaces: Yes
Head Material: PTFE
Minimum Temperature F: -40 Degrees F
Maximum Temperature C: 260 Degrees C
For Application: Air, Surface
Temperature Range: -40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C
Thermocouple Type: Type K
Minimum Temperature °C: -40 Degrees C
Minimum Temperature °F: -40 Degrees F
Maximum Temperature °C: 260 Degrees C
Maximum Temperature °F: 500 Degrees F
Minimum Temperature Â°F: -40 Degrees F
Maximum Temperature Â°C: 260 Degrees C
Maximum Temperature Â°F: 500 Degrees F
Minimum Temperature Â°C: -40 Degrees C
Maximum Temperature (°F): 500 Degrees F
Maximum Temperature (°C): 260 Degrees C
Tip Style: Rounded
Handle Type: Straight Handle
For Media Type: Surfaces
Cable Material: PVC
Junction Type: Ungrounded
Probe Bend: Straight

Description

Bead Wire Temperature Probe, Type K, For Application Air, Surface, Banana Plug, Probe Size 5/32 in, Cable Length 3 ft, -40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C, Thermocouple
