  11. 1" FNPT Bronze Electronic Ball Valve 2-Way
Shop All Ball Valves
Dynaquip Controls

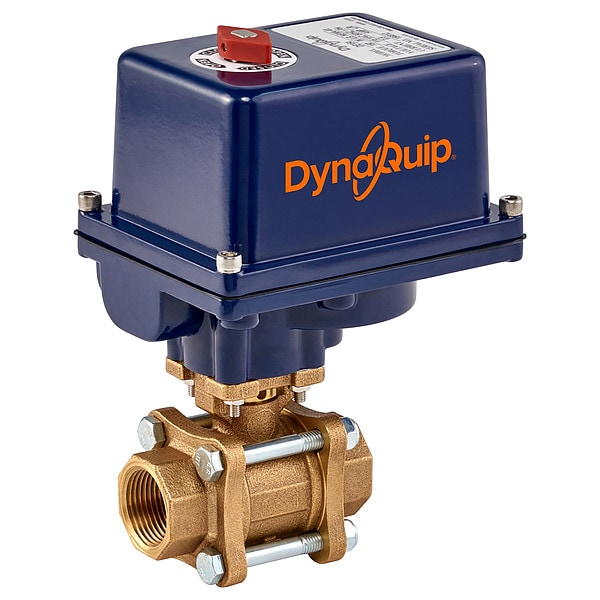

1" FNPT Bronze Electronic Ball Valve 2-Way

product price: $629.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Bronze
  • Body Style 2-Way
  • Ball Material CF8M Stainless Steel
  • Max. Pressure 600 psi CWP
  • Port Full
See all product information

Product Information

Dimensions

Pipe Size 1"
Overall Length 3.46 in
Connection Size - Side 1 1 in
Connection Size - Side 2 1 in
Nominal Valve Size 1 in

Details

Body Material Bronze
Body Style 2-Way
Ball Material CF8M Stainless Steel
Max. Pressure 600 psi CWP
Port Full
Connection Type FNPT x FNPT
Max. Operating Pressure Differential 300 psi
Item Electronic Actuated Ball Valve
Stem Material 316 stainless steel
Stem Type Blowout Proof
Seat Material PTFE
Valve Structure 3-Piece
Body Seal Material PTFE/Viton
Ambient Temp. Range -40 Degrees to 150 Degrees F
Voltage 120V AC
Standards ASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X
Mount Direct
Ball Valve Basic Body Material Bronze
Ball Valve Product Group Actuated
Temp. Range -20 Degrees to 400 Degrees F
Seal Material PTFE, FKM
Actuator Operation 90 Degrees
Actuator Ambient Temperature - Maximum 150 Degrees F
Maximum Pressure - Combustible Gas Not Rated
Valve Ways 2-Way
Maximum Pressure - Steam 125 psi
Connection Type - Side 1 NPT
Actuator Features Manual Override, Position Indicator, Thermal Overload Protection
Connection Type - Side 2 NPT
Operating Temperature - Maximum 400 Degrees F
NEMA Enclosure Rating 4X
Connection Gender - Side 2 Female
Ball Port Style Full Port
Maximum Current 5 A
Actuator Motor Type Reversing
Coefficient of Volume (Cv) 30
Connection Gender - Side 1 Female
Actuator Cycle Time - 90 Degrees 2.5 sec
Manufacturer Warranty 2 yr
Actuator Duty Cycle 50 %
Valve Body Style Straight
Maximum Pressure - Operating 600 psi
Fail Safe Position Fail Last
Actuator Series DE
For Media Compressed Air, Natural Gas, Oil
IP Rating IP66
Included Mounting ISO 5211 Actuator Mounting Pad
3-A Standard Compliance Not Rated
Valve Construction Three-Piece
Actuator Ambient Temperature - Minimum -40 Degrees F
Operating Temperature - Minimum -20 Degrees F
Maximum Operating Pressure Differential 300 psi

Description

Electrically Actuated Two-Way Ball Valve, Ball Material 316 Stainless Steel, Nominal Valve Size 1 in, Maximum Pressure - Operating 600 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, Seal Material PTFE, FKM, Voltage 120V AC, Fail Safe Position Fail Last, IP Rating IP66, Actuator Cycle Time - 90 Degrees 2.5 sec, Valve Construction Three-Piece, Actuator Features Manual Override, Position Indicator, Thermal Overload Protection, Connection Gender - Side 1 Female

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
