  11. 1" FNPT Carbon Steel Ball Valve Inline

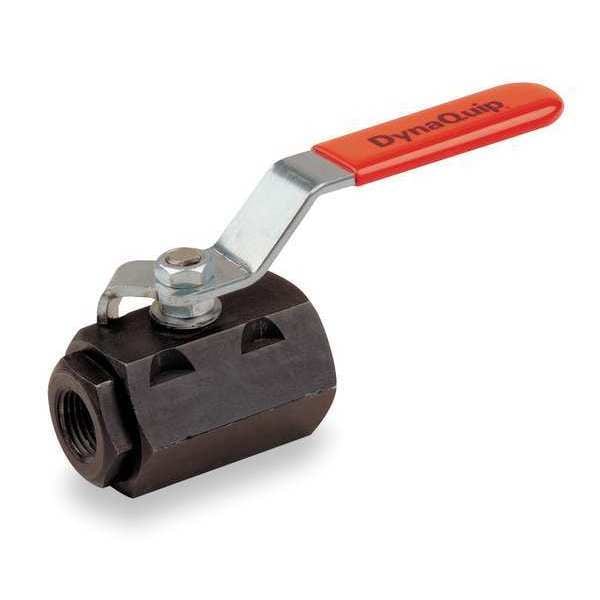

Dynaquip Controls 1" FNPT Carbon Steel Ball Valve Inline VLE2.AK 1" - main

1" FNPT Carbon Steel Ball Valve Inline

  • Mfr # VLE2.AK 1"

  • Zoro # G2210171

product price: $107.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Chrome Plated Carbon Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VLE2.AK 1"
Zoro #
G2210171
UPC #
649848015731
Country of Origin
United States

Dimensions

Pipe Size
1 in
Overall Length
3.93 in
Handle Length
5.1 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in
Nominal Valve Size
1 in
Handle Height
3.65 in

Details

Ball Material
Chrome Plated Carbon Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Seat Material
Carbon & Graphite Filled PTFE
Max. Pressure
3,000 PSI CWP
Handle Material
Steel with Vinyl Grip
Temp. Range
-20 Degrees to 425 Degrees F
Stem Type
Blowout Proof
Body Material
Carbon Steel
Handle Type
Lever
Features
Designed for flow control processes in agricultural, manufacturing, hydraulic, petroleum, petrochemical, gas production, pipeline and crude oil applications. External phosphate coated body provides superior corrosion resistance. Hex shaped body allows quick and easy installation. Built tough in the USA
Stem Material
Nickel-Plated Steel
Ball Valve Product Group
Manual
Standards
RoHS Compliant
Seal Material
PTFE
Type
Two Piece
Coefficient of Volume (Cv)
54
Operating Temperature - Minimum
-20 Degrees F
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Maximum Pressure - Combustible Gas
Not Rated
Vacuum Service Rating
29 in Hg
Maximum Pressure - Steam
150 PSI WSP
Handle - Locking
Non-Locking
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Operating Temperature - Maximum
425 Degrees F
Color - Valve Handle
Orange
Valve Series
VLE

Description

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 3,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Carbon Steel, Ball Port Style Full Port, Handle - Locking Non-Locking
