  9. 1/4" FNPT Brass Electronic Ball Valve 3-Way

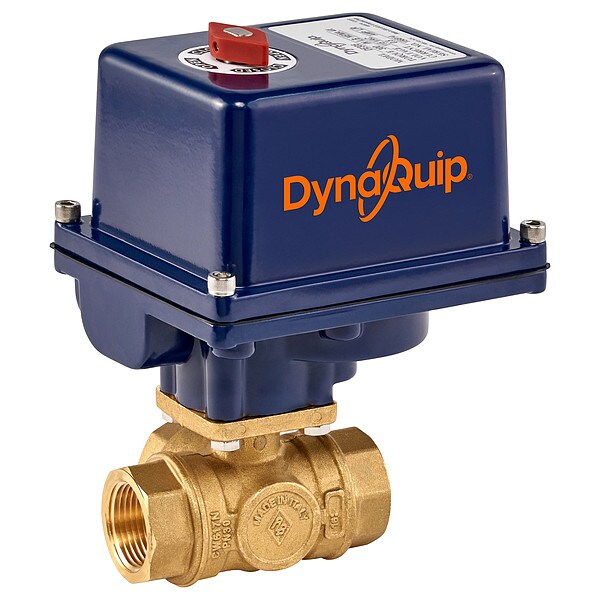

Dynaquip Controls 1/4" FNPT Brass Electronic Ball Valve 3-Way EYHG1AUE20H - main

1/4" FNPT Brass Electronic Ball Valve 3-Way

  • Mfr # EYHG1AUE20H

  • Zoro # G1911962

product price: $452.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Body Style
3-Way
Ball Valve Basic Body Material
Brass
Voltage
12-24VAC/VDC
Body Seal Material
Viton
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EYHG1AUE20H
Zoro #
G1911962
UPC #
649848037177
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Overall Length
2.64 in
Outlet Connection Size - Side 2
1/4 in
Inlet Connection Size
1/4 in
Nominal Valve Size
1/4 in
Outlet Connection Size - Side 1
1/4 in

Details

Body Material
Brass
Body Style
3-Way
Ball Valve Basic Body Material
Brass
Voltage
12-24VAC/VDC
Body Seal Material
Viton
Mount
Direct
Port
Standard L
Standards
NEMA 4, NEMA 4X, ISO5211
Ball Material
Ni-Chrome Plated Brass
Connection Type
FNPT x FNPT x FNPT
Ball Valve Product Group
Actuated
Item
Electronic Actuated Ball Valve
Stem Type
Blowout Proof
Valve Structure
2-Piece
Temp. Range
-20 Degrees to 450 Degrees F
Stem Material
Nickel Plated Brass
Max. Pressure
400 psi CWP
Ambient Temp. Range
-40 Degrees to 150 Degrees F
Max. Steam Pressure
100 psi WSP
Seat Material
PTFE/Viton
Seal Material
PTFE, FKM
Inlet Connection Type
NPT
IP Rating
IP66
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Steam
100 psi
3-A Standard Compliance
Not Rated
Actuator Series
DE
Actuator Cycle Time - 90 Degrees
2.5 sec
Inlet Connection Gender
Female
Outlet Connection Type - Side 2
NPT
Maximum Pressure - Combustible Gas
Not Rated
Fail Safe Position
Fail Last
Flow Pattern
L Flow
Valve Construction
Two-Piece
Outlet Connection Type - Side 1
NPT
Ball Port Style
Standard Port
Actuator Ambient Temperature - Maximum
150 Degrees F
Maximum Pressure - Operating
400 psi
Outlet Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
3.24
Valve Ways
3-Way
For Media
Water
Actuator Duty Cycle
50 %
Operating Temperature - Maximum
300 Degrees F
Actuator Features
Heater, Position Indicator, Thermal Overload Protection
Maximum Operating Pressure Differential
300 psi
NEMA Enclosure Rating
4, 4X
Actuator Ambient Temperature - Minimum
-40 Degrees F
Outlet Connection Gender - Side 2
Female
Included Mounting
ISO 5211 Actuator Mounting Pad
Actuator Operation
90 Degrees
Valve Series
EYHG

Description

Electrically Actuated Three-Way Ball Valve, Valve Construction Two-Piece, Voltage 12V DC, 24V AC/V DC, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 100 psi, Maximum Operating Pressure Differential 300 psi, Fail Safe Position Fail Last, Actuator Operation 90 Degrees , Actuator Cycle Time - 90 Degrees 2.5 sec, Actuator Features Heater, Position Indicator, Thermal Overload Protection, Ball Material Nickel-Chrome Plated Brass, Seal Material PTFE, FKM, Seat Material PTFE

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
