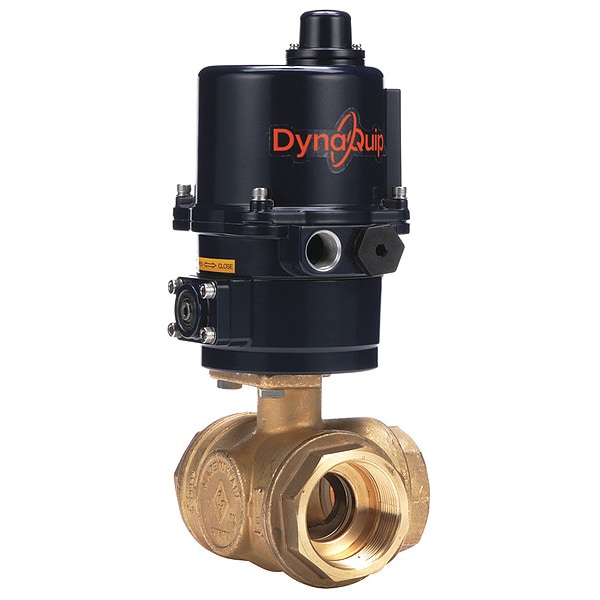

Dynaquip Controls 2" FNPT Brass Electronic Ball Valve 3-Way EYHG8AUE07 - main

2" FNPT Brass Electronic Ball Valve 3-Way

  • Mfr # EYHG8AUE07

  • Zoro # G2005017

product price:  $1,835.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Body Style
3-Way
Valve Structure
2-Piece
Max. Pressure
400 psi CWP
Mount
Direct
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EYHG8AUE07
Zoro #
G2005017
UPC #
649848037153
Country of Origin
Multiple

Dimensions

Pipe Size
2"
Overall Length
5.73 in
Outlet Connection Size - Side 1
2 in
Inlet Connection Size
2 in
Nominal Valve Size
2 in
Outlet Connection Size - Side 2
2 in

Details

Body Material
Brass
Body Style
3-Way
Valve Structure
2-Piece
Max. Pressure
400 psi CWP
Mount
Direct
Voltage
120V AC
Stem Material
Nickel Plated Brass
Body Seal Material
Viton
Connection Type
FNPT x FNPT x FNPT
Stem Type
Blowout Resistant
Ball Valve Basic Body Material
Brass
Ball Material
Nickel-Chrome Plated Brass
Seat Material
PTFE
Temp. Range
-20 Degrees to 450 Degrees F
Ambient Temp. Range
-22 Degrees to 149 Degrees F
Ball Valve Product Group
Actuated
Item
Electrically Actuated Three-Way Ball Valve
Port
Standard L
Max. Steam Pressure
100 psi WSP
Standards
ISO 5211
Seal Material
PTFE, FKM
Valve Ways
3-Way
Maximum Operating Pressure Differential
300 psi
Actuator Ambient Temperature - Maximum
140 Degrees F
Actuator Series
DE
For Media
Water
Actuator Operation
90 Degrees
Maximum Pressure - Operating
400 psi
Actuator Cycle Time - 90 Degrees
27 sec
Included Mounting
ISO 5211 Actuator Mounting Pad
Flow Pattern
L Flow
Operating Temperature - Minimum
-20 Degrees F
Actuator Features
Auxiliary Limit Switch, Manual Override, Position Indicator
Valve Construction
Two-Piece
Outlet Connection Gender - Side 2
Female
Ball Port Style
Standard Port
Outlet Connection Type - Side 1
NPT
Fail Safe Position
Fail Last
Operating Temperature - Maximum
300 Degrees F
Coefficient of Volume (Cv)
43.81
3-A Standard Compliance
Not Rated
Outlet Connection Gender - Side 1
Female
IP Rating
IP66
Inlet Connection Gender
Female
Actuator Duty Cycle
50 %
NEMA Enclosure Rating
4, 4X
Outlet Connection Type - Side 2
NPT
Maximum Pressure - Steam
100 psi
Maximum Pressure - Combustible Gas
Not Rated
Inlet Connection Type
NPT
Actuator Ambient Temperature - Minimum
10 Degrees F
Valve Series
EYHG

Description

Electrically Actuated Three-Way Ball Valve, Valve Construction Two-Piece, Voltage 120V AC, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 100 psi, Maximum Operating Pressure Differential 300 psi, Fail Safe Position Fail Last, Actuator Operation 90 Degrees , Actuator Cycle Time - 90 Degrees 27 sec, Actuator Features Auxiliary Limit Switch, Manual Override, Position Indicator, Ball Material Nickel-Chrome Plated Brass, Seal Material PTFE, FKM, Seat Material PTFE
