Dynaquip Controls

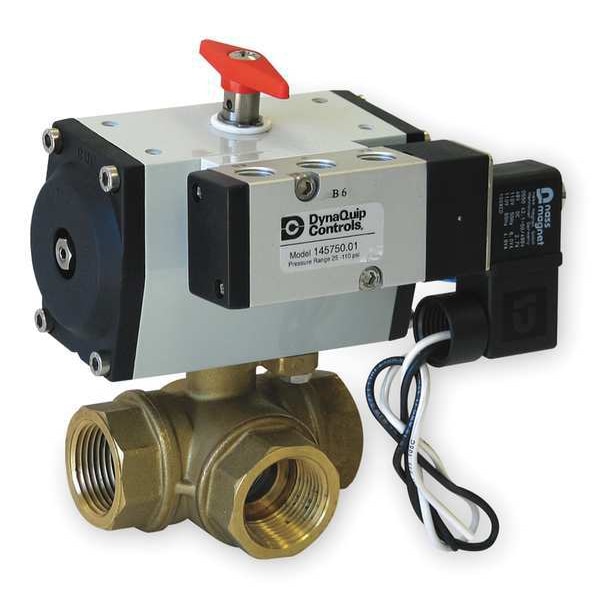

2" FNPT Brass Pneumatic Ball Valve 3-Way

product price: $1,178.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Brass
  • Connection Type FNPT
  • Pipe Size 2 in
  • Overall Length 5.73 in
  • Mount Direct
See all product information

Product Information

Dimensions

Pipe Size 2 in
Overall Length 5.73 in
Inlet Connection Size 2 in
Nominal Valve Size 2 in
Ball Opening Size 2 in

Details

Item Pneumatically Actuated Three-Way Ball Valve
Body Material Brass
Connection Type FNPT
Mount Direct
Ball Material Nickel-Plated Brass
Temp. Range -4 Degrees to 176 Degrees F
Port Standard L
Max. Pressure 400 psi CWP
Body Seal Material PTFE/Viton
Standards NEMA 4X
Seat Material PTFE, FKM
Operation Double Acting
Body Style 3-Way
Max. Inlet Pressure 120 psi
Ball Valve Product Group Actuated
Stem Material Nickel-Plated Brass
Valve Structure 1-Piece
Required Pressure 80 psi
Ball Valve Basic Body Material Brass
Seal Material PTFE, FKM
Actuator Operation Air to Air
Inlet Connection Gender Female
Outlet Connection Type - Side 2 NPT
Maximum Pressure - Combustible Gas Not Rated
Actuator Features 2 SPDT Switches
Stem Type Bottom Loaded
Actuator Ambient Temperature - Minimum -4 Degrees F
For Media Air, Natural Gas, Oil, Water
Operating Temperature - Minimum -4 Degrees F
Included Mounting Actuator Mounting Pad
Fail Safe Position Fail Last
Outlet Connection Gender - Side 2 Female
NEMA Enclosure Rating 4, 4X
Inlet Connection Type NPT
Flow Pattern L Flow
Actuator Series HP
Operating Temperature - Maximum 200 Degrees F
3-A Standard Compliance Not Rated
Maximum Operating Pressure Differential 300 psi
Ball Port Style Standard Port
Outlet Connection Type - Side 1 NPT
Inlet Connection Entry Bottom
Maximum Pressure - Operating 300 psi
Valve Construction One-Piece
Included Pilot Solenoid 115V AC Pilot Solenoid
Actuator Air Pressure - Maximum 120 psi
Actuator Air Port Connection 1/4 in FNPT
Valve Ways 3-Way
Actuator Ambient Temperature - Maximum 176 Degrees F
Outlet Connection Gender - Side 1 Female
Actuator Air Pressure - Minimum 80 psi
Maximum Pressure - Steam 100 psi

Description

Pneumatically Actuated Three-Way Ball Valve, Actuator Operation Air to Air, Included Pilot Solenoid 115V AC Pilot Solenoid, Fail Safe Position Fail Last, Body Material Brass, Valve Construction One-Piece, Ball Port Style Standard Port, Flow Pattern L Flow, Nominal Valve Size 2 in, Maximum Pressure - Operating 300 psi, Maximum Operating Pressure Differential 300 psi, Maximum Pressure - Steam 100 psi, Inlet Connection Entry Bottom, Inlet Connection Gender Female, Inlet Connection Type NPT

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
