Hose Reel Swivel, 1/4 in FNPT, 3/4 in MUNF, For 4000/5000/RT Reel Series, 500 psi Max Op Pressure
Mfr # S600886
Zoro # G2095685
product price:Â $91.55
/eaKey Features
For Use With
4420 OLP1, 4435 OLP1, 4615 OLP1, 4625 OLP1, 5450 ELP1, 5450 OLP1, 5635 OLP1, 5650 OLP1, H160001, RT435-OLP1 to RT650-OLP1
For Use With Mfr. Model Number
4400 OLP,4420 OLP,4425 OLP,4435 OLP,4600 OLP,4615 OLP,4617 OLP,4625 OLP,4625 OLPSW5,5400 OLP,5450 ELP,5450 OLP,5600 OLP,5605 OLP,5635 ELPSW5,5635 OLP,5635 OLPSW5,5650 OLP,B4425 OLP,B4435 OLP,B4625 OLP,B5450 OLP,B5635 OLP,B5650 OLP,H16000,RT403-OLP,RT405-OLP,RT406-OLP,RT425-OLP,RT435-OLP,RT450-OLP,RT465-OLP,RT602-OLP,RT605-OLP,RT625-OLP,RT635-OLP,RT650-OLP
Includes
O-Ring
Type
3/4"-16 UNF(M) x 1/4 in NPT(F) Swivel Assembly
Material
Brass
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S600886
- Zoro #
- G2095685
- UPC #
- 699567012078
- Country of Origin
- China
Dimensions
- Inlet Thread Size
- 1/4 in - 18
- Outlet Thread Size
- 3/4 in - 16
Details
- Item
- Swivel
- For Use With
- 4420 OLP1, 4435 OLP1, 4615 OLP1, 4625 OLP1, 5450 ELP1, 5450 OLP1, 5635 OLP1, 5650 OLP1, H160001, RT435-OLP1 to RT650-OLP1
- For Use With Mfr. Model Number
- 4400 OLP,4420 OLP,4425 OLP,4435 OLP,4600 OLP,4615 OLP,4617 OLP,4625 OLP,4625 OLPSW5,5400 OLP,5450 ELP,5450 OLP,5600 OLP,5605 OLP,5635 ELPSW5,5635 OLP,5635 OLPSW5,5650 OLP,B4425 OLP,B4435 OLP,B4625 OLP,B5450 OLP,B5635 OLP,B5650 OLP,H16000,RT403-OLP,RT405-OLP,RT406-OLP,RT425-OLP,RT435-OLP,RT450-OLP,RT465-OLP,RT602-OLP,RT605-OLP,RT625-OLP,RT635-OLP,RT650-OLP
- Includes
- O-Ring
- Type
- 3/4"-16 UNF(M) x 1/4 in NPT(F) Swivel Assembly
- Material
- Brass
- Outlet Type
- UNF
- For Reel Series
- 4000, 5000, RT
- Inlet Gender
- Female
- Outlet Swivel Configuration
- 3/4 in MUNF
- Outlet Gender
- Male
- Maximum Operating Pressure
- 500 psi
- Inlet Type
- NPT
- Includes Seal
- Yes
- Maximum Operating Temperature
- 210 Degrees F
- Seal Material
- Nitrile
- Angle
- 90 Degrees
- Inlet Swivel Configuration
- 1/4 in FNPT
- Minimum Operating Pressure
- 0 psi
- Minimum Operating Temperature
- -40 Degrees F
Description

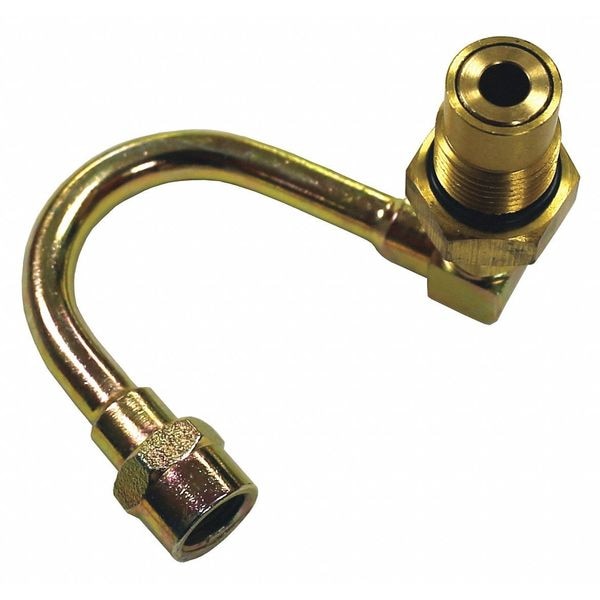

The REELCRAFT S600886 is a 90-degree swivel assembly used as a pneumatic tool part for specified Reelcraft reel series and models. It has a 1/4 in. NPT female inlet and a 3/4 in.-16 UNF male outlet, with a maximum operating pressure of 500 psi. The assembly includes an O-ring and seal, and is constructed with a brass body and nitrile seal material.
Key features:
- 90-degree configuration: Changes direction at a right angle within the connection.
- Connection sizes: 1/4 in.-18 FNPT inlet x 3/4 in.-16 MUNF outlet.
- Pressure rating: Rated for operation from 0 to 500 psi.
- Temperature range: Operates from -40 to 210 degrees F.
- Seal material: Nitrile seal is included.
- Includes: O-ring and seal.
- Compatible reel series: 4000, 5000, and RT.
- For use with Reelcraft models: Includes 4400 OLP, 4420 OLP, 4425 OLP, 4435 OLP, 4600 OLP, 4615 OLP, 4617 OLP, 4625 OLP, 5400 OLP, 5450 ELP, 5450 OLP, 5600 OLP, 5605 OLP, 5635 OLP, 5650 OLP, H16000, and RT403-OLP through RT650-OLP series models as listed.
