  9. 3" FNPT Brass Electronic Ball Valve 3-Way

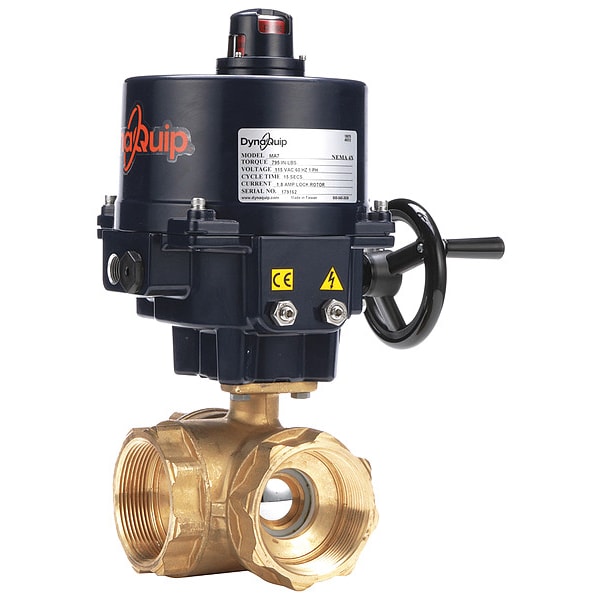

Dynaquip Controls 3" FNPT Brass Electronic Ball Valve 3-Way EYHGAAUE01 - main

3" FNPT Brass Electronic Ball Valve 3-Way

  • Mfr # EYHGAAUE01

  • Zoro # G0988967

product price: $2,136.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Body Style
3-Way
Temp. Range
-20 Degrees to 450 Degrees F
Mount
Direct
Max. Pressure
400 psi CWP
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EYHGAAUE01
Zoro #
G0988967
UPC #
649848037160
Country of Origin
Multiple

Dimensions

Pipe Size
3"
Overall Length
5.73 in
Nominal Valve Size
3 in
Outlet Connection Size - Side 2
3 in
Inlet Connection Size
3 in
Outlet Connection Size - Side 1
3 in

Details

Body Material
Brass
Body Style
3-Way
Temp. Range
-20 Degrees to 450 Degrees F
Mount
Direct
Max. Pressure
400 psi CWP
Standards
ISO5211, NEMA 4, NEMA 4X
Item
Electronic Actuated Ball Valve
Ambient Temp. Range
-22 Degrees to 149 Degrees F
Connection Type
FNPT x FNPT x FNPT
Ball Valve Product Group
Actuated
Port
Standard L
Stem Type
Blowout Proof
Body Seal Material
Viton
Ball Valve Basic Body Material
Brass
Stem Material
Nickel Plated Brass
Max. Steam Pressure
100 psi WSP
Valve Structure
2-Piece
Seat Material
PTFE/Viton
Voltage
120V AC
Ball Material
Ni-Chrome Plated Brass
Seal Material
PTFE, FKM
Valve Ways
3-Way
Operating Temperature - Minimum
-20 Degrees F
For Media
Water
Inlet Connection Gender
Female
Fail Safe Position
Fail Last
Operating Temperature - Maximum
300 Degrees F
Maximum Operating Pressure Differential
300 psi
Actuator Cycle Time - 90 Degrees
17 sec
Actuator Operation
90 Degrees
Outlet Connection Gender - Side 2
Female
Actuator Duty Cycle
50 %
Flow Pattern
L Flow
IP Rating
IP66
Actuator Features
Auxiliary Limit Switch, Manual Override, Position Indicator
Valve Construction
Two-Piece
Outlet Connection Type - Side 1
NPT
Coefficient of Volume (Cv)
70.05
Included Mounting
ISO 5211 Actuator Mounting Pad
Maximum Pressure - Steam
100 psi
Actuator Ambient Temperature - Maximum
140 Degrees F
Outlet Connection Gender - Side 1
Female
Inlet Connection Type
NPT
Actuator Series
DE
Actuator Ambient Temperature - Minimum
10 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
3-A Standard Compliance
Not Rated
Maximum Pressure - Operating
400 psi
Outlet Connection Type - Side 2
NPT
NEMA Enclosure Rating
4, 4X
Ball Port Style
Standard Port
Valve Series
EYHG

Description

Electrically Actuated Three-Way Ball Valve, Valve Construction Two-Piece, Voltage 120V AC, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 100 psi, Maximum Operating Pressure Differential 300 psi, Fail Safe Position Fail Last, Actuator Operation 90 Degrees , Actuator Cycle Time - 90 Degrees 17 sec, Actuator Features Auxiliary Limit Switch, Manual Override, Position Indicator, Ball Material Nickel-Chrome Plated Brass, Seal Material PTFE, FKM, Seat Material PTFE

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
