Shop DYNAQUIP CONTROLS

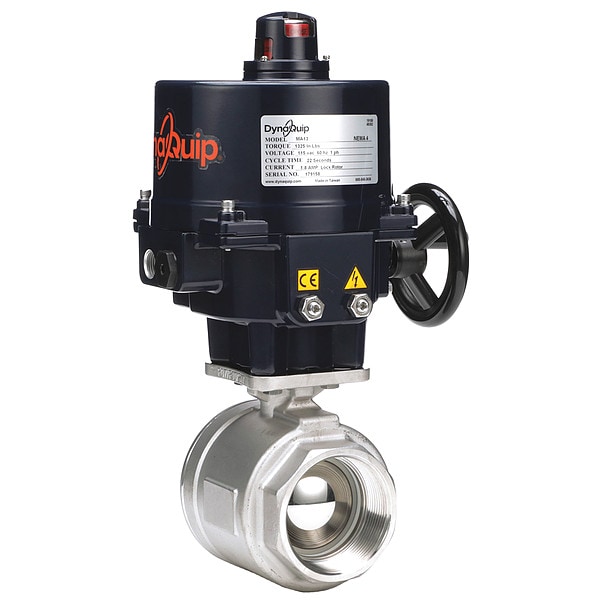

3" FNPT Stainless Steel Electronic Ball Valve 2-Way

  • Mfr # E2S2AAJE02

  • Zoro # G1947592

product price:
$
2,231.99
/ea
Free Shipping & Returns

Key Features

Body Material
316 Stainless Steel
Body Style
2-Way
Connection Type
FNPT x FNPT
Ball Valve Product Group
Actuated
Standards
ASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E2S2AAJE02
Zoro #
G1947592
UPC #
649848024399
Country of Origin
Taiwan, Province of China
Body Material
316 Stainless Steel
Body Style
2-Way
Connection Type
FNPT x FNPT
Ball Valve Product Group
Actuated
Item
Electrically Actuated Two-Way Ball Valve
Standards
ASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X
Ball Valve Basic Body Material
Stainless Steel
Mount
Direct
Body Seal Material
Viton
Stem Material
316 stainless steel
Ball Material
316 Stainless Steel
Voltage
115V AC
Valve Structure
2-Piece
Seat Material
PTFE, RPTFE
Max. Pressure
1000 psi CWP
Stem Type
Blowout Resistant
Port
Full
Max. Steam Pressure
150 psi WSP
Temp. Range
-4 Degrees to 392 Degrees F
Ambient Temp. Range
-40 Degrees to 150 Degrees F
Seal Material
PTFE, FKM
Maximum Pressure - Steam
150 psi
For Media
Compressed Air, Natural Gas, Oil
Connection Gender - Side 2
Female
Actuator Operation
90 Degrees
Actuator Features
Auxiliary Limit Switch, Manual Override, Position Indicator
Valve Body Style
Straight
Actuator Cycle Time - 90 Degrees
26 sec
Maximum Pressure - Combustible Gas
Not Rated
3-A Standard Compliance
Not Rated
Actuator Motor Type
Reversing
Fail Safe Position
Fail Last
Ball Port Style
Full Port
Valve Ways
2-Way
NEMA Enclosure Rating
4X
Actuator Output Shaft Material
316 Stainless Steel
Actuator Ambient Temperature - Maximum
140 Degrees F
Operating Temperature - Maximum
392 Degrees F
Manufacturer Warranty
2 yr
Actuator Duty Cycle
50 %
Operating Temperature - Minimum
-4 Degrees F
Maximum Operating Pressure Differential
300 psi
Maximum Pressure - Operating
1,000 psi
Connection Type - Side 1
NPT
Actuator Ambient Temperature - Minimum
10 Degrees F
IP Rating
IP66
Coefficient of Volume (Cv)
1,150
Included Mounting
ISO 5211 Actuator Mounting Pad
Maximum Current
5 A
Valve Construction
Two-Piece
Connection Gender - Side 1
Female
Actuator Series
MA13
Connection Type - Side 2
NPT
Valve Series
E2S

Description

Electrically Actuated Two-Way Ball Valve, Ball Material 316 Stainless Steel, Nominal Valve Size 3 in, Maximum Pressure - Operating 1,000 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, RPTFE, Seal Material PTFE, FKM, Voltage 115V AC, Fail Safe Position Fail Last, IP Rating IP66, Actuator Cycle Time - 90 Degrees 26 sec, Valve Construction Two-Piece, Actuator Features Auxiliary Limit Switch, Manual Override, Position Indicator, Connection Gender - Side 1 Female
