Shop DYNAQUIP CONTROLS

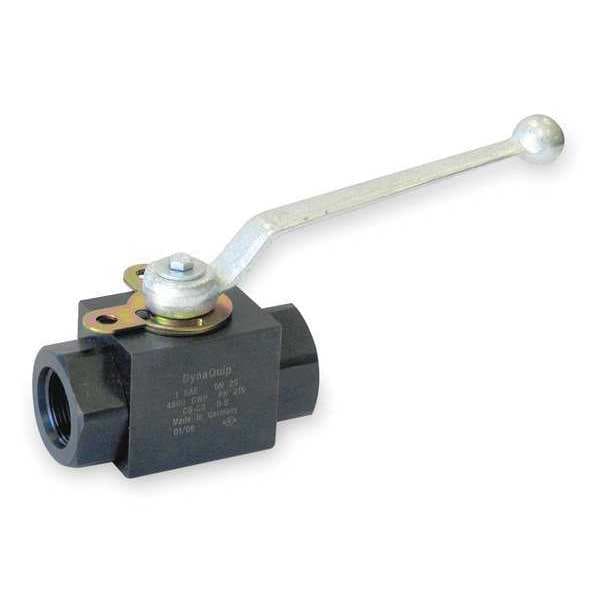

3/4" FNPT Carbon Steel Ball Valve Inline

  • Mfr # VAE2.A00P 3/4

  • Zoro # G3227366

product price:
$
94.99
/ea

Key Features

Ball Material
Chrome-Plated Carbon Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VAE2.A00P 3/4
Zoro #
G3227366
UPC #
649848037993
Country of Origin
Germany

Dimensions

Pipe Size
3/4 in
Overall Length
3.66 in
Connection Size - Side 1
3/4 in
Handle Length
7.56 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Handle Height
3.71 in
Wire Rope Length
3.66 in
Length
3.66 in

Details

Ball Material
Chrome-Plated Carbon Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Features
Designed for high pressure flow control processes in agricultural, manufacturing, hydraulic, petroleum, petrochemical, gas production, pipeline and crude oil applications. External phosphate coated body provides superior corrosion resistance. Repairable, bar stock body design.
Max. Pressure
4,600 PSI CWP
Body Material
Carbon Steel
Stem Type
Blowout Resistant
Temp. Range
-20 Degrees to 175 Degrees F
Ball Valve Product Group
Manual
Seat Material
Delrin
Handle Material
Cast Steel
Stem Material
Nickel-Plated Steel
Handle Type
Lever
Standards
RoHS Compliant
Seal Material
Delrin
Type
Three Piece
Color - Valve Handle
Gray
Operating Temperature - Minimum
-20 Degrees F
Coefficient of Volume (Cv)
35
3-A Standard Compliance
Not Rated
Connection Gender - Side 1
Female
Handle - Locking
Locking
Vacuum Service Rating
29 in Hg
Connection Type - Side 2
NPT
Maximum Pressure - Steam
Not Rated
Vented Ball Valve
Non-Vented
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 2
Female
Connection Type - Side 1
NPT
Operating Temperature - Maximum
175 Degrees F
Valve Series
VAE
Valve Construction
Three-Piece
Maximum Pressure - Operating
5,800 psi
Valve Body Style
Straight

Description

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 5,800 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Carbon Steel, Ball Port Style Full Port, Handle - Locking Locking
