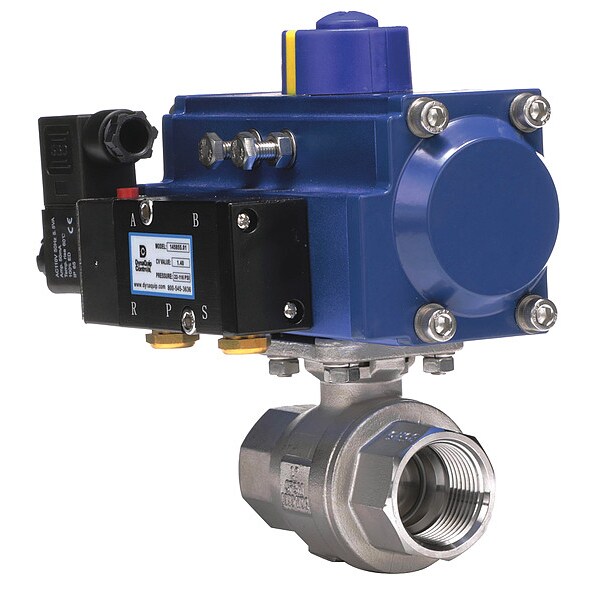

1" FNPT Stainless Steel Pneumatic Ball Valve Inline

DYNAQUIP CONTROLS| Zoro #: G2136355| Mfr #: P2S25AJDA052A

$421.00 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Max. Pressure: 1000 psi CWPValve Basic Body Material: Stainless SteelStem Material: 316 stainless steel
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2136355 Mfr #: P2S25AJDA052A
Max. Pressure: 1000 psi CWPValve Basic Body Material: Stainless Steel
Stem Material: 316 stainless steelTemp. Range: -4 Degrees to 176 Degrees F
Max. Inlet Pressure: 120 psiConnection Type: FNPT
Seat Material: PTFEBall Valve Product Group: Actuated
Ball Material: 316 stainless steelValve Structure: 2-Piece
Operation: Double ActingPort: Full
Required Pressure: 80 psiPipe Size: 1"
Item: Pneumatic Actuated Ball ValveBody Style: Inline
Mount: DirectBody Material: 316 Stainless Steel
Body Seal Material: PTFE/VitonStandards: NEMA 4X
Max. Steam Pressure: 150 psi WSPCountry of Origin (subject to change): China

Description

Pneumatic Actuated Ball Valve, Body Material 316 Stainless Steel, Body Style Inline, Valve Structure 2-Piece, Pipe Size 1 In., Connection Type FNPT, Full Port, Max. Pressure 1000 psi CWP, Max. Steam Pressure 150 psi WSP, Required Pressure 80 psi, Max. Inlet Pressure 120 psi, Temp. Range -4 Degrees to 176 Degrees F, Ball Material 316 Stainless Steel, Seat Material PTFE, Stem Material 316 Stainless Steel, Body Seal Material PTFE/Viton, Standards NEMA 4X

Restrictions and Compliance

This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
