Shop E-PLEX

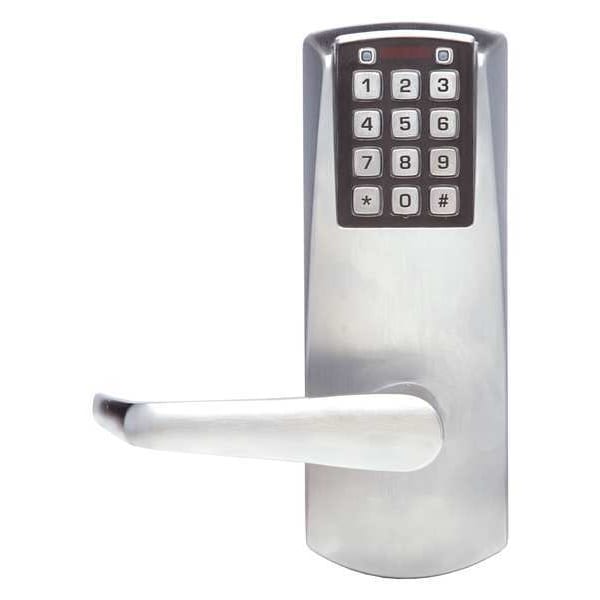

Electronic Lock, Satin Chrome, 12 Button

  • Mfr # E2066LL62641

  • Zoro # G2806511

product price:
$
557.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Entry
Key Override Options
None
Hand
Nonhanded
Finish
Satin Chrome
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E2066LL62641
Zoro #
G2806511
UPC #
-
Country of Origin
Canada
Item
Electronic Keyless Lock
Handle Type
Lever
Function
Entry
Key Override Options
None
Hand
Nonhanded
Finish
Satin Chrome
Keypad
12 Button
Backset
2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Entrance
Case Material
Solid Cast
Grade
1
Weather Resistant
Yes
Max. User Codes
100
Series
E2000
ADA Compliant
Yes
Standards
ANSI/BHMA A156.13 Grade 1, ANSI/BHMA A156.2 Grade 1, ANSI/BHMA A156.25 Grade 1, ANSI/BHMA A156.3 Grade 1
Mounting Style
Mortise
Timed Entry Allowance
2 to 20 sec
Max. Proximity Range
At Lock
Number of Keys
2
Includes
Lock Assembly
Lock Material
Solid Cast
Event Audit Trail
1000
Fire Rating
3 hr
Power Source
(3) AA Batteries
Keypad Material
Solid Metal
Operating Temp. Range
-31 Degrees to 151 Degrees F Indoor/Outdoor Approved
Access Method
Keypad
Battery Life
100,000 Cycles
Voltage
3 AA Batteries
Location Type
Commercial
Material
Zinc
Bolt Throw
3/4 in
Type
Electronic
Lockset Handle Type
Lever
Includes Core
Core Not Included
Lockset Material
Solid Cast
Temperature - Minimum
-31 Degrees F
Strike Type
ASA, T-Strike
Event Audit Trails
1,000
Hand Orientation
Non-Handed
Lockset Type
Electrical
ANSI Grade
1
User Codes - Maximum
100
UL Fire Rating
UL10C
ANSI/BHMA Finish
Satin Chromium-Plated
Includes Hardware
Hardware Not Included
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Temperature - Maximum
151 Degrees F
Power Source - TS Only
(3) AA Batteries
Power Source - old
(3) AA Batteries

Description

Electronic Keyless Lock, Function Entry, Access Method Keypad, Mounting Style Mortise, Lock Material Solid Cast, Finish Satin Chrome, Series E2000, Handle Type Lever, Door Thickness 1-3/4 in to 2-1/4 in, Key Override Options Best and Equivalents (6 or 7 Pin Length); Schlage In.C In. Keyway, Hand Nonhanded, Outside Height 8 15/16 in, Outside Width 3 5/16 in, Outside Depth 2 3/16 in, Keypad Material Solid Metal, Power Source (3) AA Batteries, Battery Life 100,000 Cycles
