Shop E-PLEX

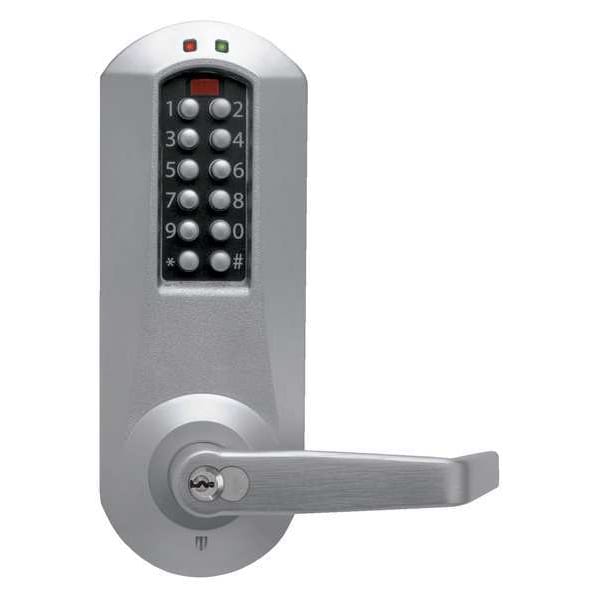

Electronic Lock, Satin Chrome, 12 Button

  • Mfr # E5031SWL626-41

  • Zoro # G8740672

product price:
$
779.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Entry with Key Override
Key Override Options
Large Format Removable Cores; Small Format Interchangeable Core
Hand
Nonhanded
Finish
Satin Chrome
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E5031SWL626-41
Zoro #
G8740672
UPC #
-
Country of Origin
Canada
Item
Electronic Keyless Lock
Handle Type
Lever
Function
Entry with Key Override
Key Override Options
Large Format Removable Cores; Small Format Interchangeable Core
Hand
Nonhanded
Finish
Satin Chrome
Keypad
12 Button
Backset
2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Entrance
Case Material
Solid Cast
Grade
1
Weather Resistant
Yes
Max. User Codes
100
Series
E5000
Access Method
Keypad
Operating Temp. Range
-31 Degrees to 130 Degrees F Housing, -31 Degrees to 151 Degrees F Front Housing
Mounting Style
Cylindrical
Keypad Material
Solid Metal
Number of Keys
0
Includes
Tailpiece
ADA Compliant
Yes
Event Audit Trail
9000
Battery Life
Up to 180,000 Cycles
For Use With
Schlage R/C
Lock Material
Solid Cast
Fire Rating
3 hr
Power Source
(4) AA Batteries
Max. Proximity Range
At Lock
Standards
ANSI/BHMA A156.25
Timed Entry Allowance
2 to 20 sec
Voltage
4 AA Batteries
Bolt Throw
1/2 in
Material
Zinc
Type
Electronic
Operation Type
Push Button
Lockset Material
Solid Cast
Locking/Unlocking Access - Outside
Keyway
Cylinder Core Type
Interchangeable Core Cylinder
Lockset Type
Electrical
User Codes - Maximum
100
Includes Hardware
Hardware Included
Temperature - Maximum
130 Degrees F
Hand Orientation
Non-Handed
Event Audit Trails
9,000
ANSI/BHMA Finish
Satin Chromium-Plated
ANSI Grade
1
Lockset Handle Type
Lever
Temperature - Minimum
-31 Degrees F
Power Source - TS Only
(4) AA Batteries
Power Source - old
(4) AA Batteries

Description

Electronic Keyless Lock, Function Entry with Key Override, Access Method Keypad, Mounting Style Cylindrical, Lock Material Solid Cast, Finish Satin Chrome, Series E5000, Handle Type Lever, Door Thickness 1-3/8 in to 2-1/4 in, Key Override Options Large Format Removable Cores; Small Format Interchangeable Core, Hand Nonhanded, Outside Height 8 7/8 in, Outside Width 3 3/8 in, Outside Depth 3 13/16 in, Keypad Material Solid Metal, Power Source (4) AA Batteries, Battery Life Up to 180,000 Cycles
