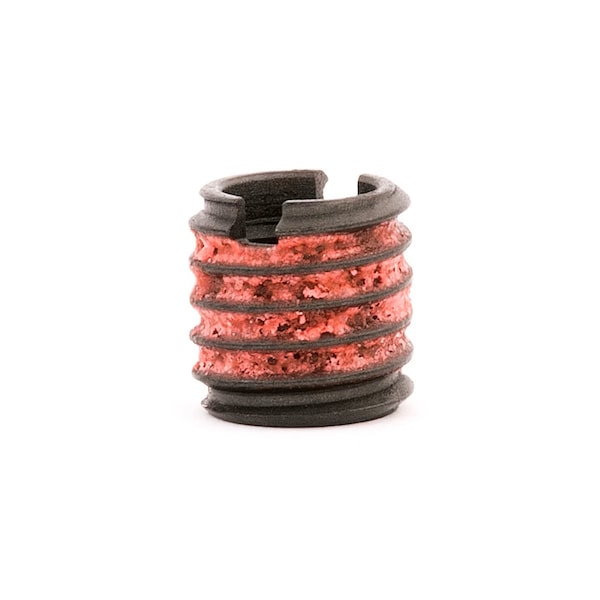

Thin Wall Self Locking Thread Insert, 1/4"-20 Int Thrd Sz, Carbon Steel, 10 PK
Mfr # 319-4-PK10
Zoro # G1609693
CAD Available
product price: $12.29
/pk 10, $1.23/eaKey Features
CAD Drawing
Internal Thread Size
1/4"-20
Material
Carbon Steel
Overall Length
3/8 in
Insert Diameter
3/8 in
External Thread Size
3/8"-16
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
319-4-PK10
Zoro #
G1609693
UPC #
839137000399
Country of Origin
United States
Dimensions
Internal Thread Size
1/4"-20
Overall Length
3/8 in
Insert Diameter
3/8 in
External Thread Size
3/8"-16
Drill Bit Size
Q
Minimum Installation Depth
7/16 in
Tap Sizes
3/8-16
Min. Full Thread Depth
7/16
Compatible Tap Size
3/8"-16
Maximum Hole Diameter
0.332 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/8 In.-16, Drill Bit Size Q, External Thread Fit 2A, External Thread Size 3/8 In.-16, Finish Black Phosphate, Insert Diameter 3/8 in, Internal Thread Fit 2B, Internal Thread Size 1/4 In.-20, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.332 in, Minimum Installation Depth 7/16 in, Overall Length 3/8 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Wall Type Thin Wall
