  15. 1NC/1NO Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13

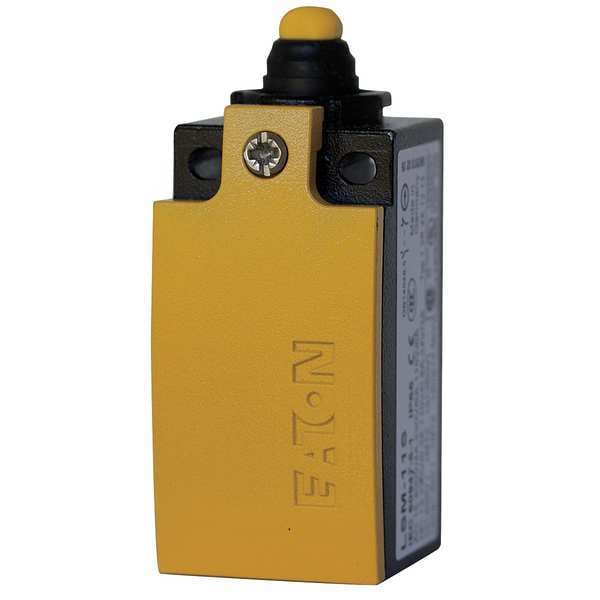

Eaton 1NC/1NO Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13 LSM-11S - main

1NC/1NO Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13

  • Mfr # LSM-11S

  • Zoro # G6904432

product price: $117.99
/ea
Free Shipping & Returns

Key Features

For Use With
Titan Limit Switch
IP Rating
IP66, IP67
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Operating Temp.
-13 Degrees to 158 Degrees F
Standards
RoHS, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSM-11S
Zoro #
G6904432
UPC #
786685392134
Country of Origin
Germany

Dimensions

Product Width
1.32 in
Product Length/Depth
1.22 in
Product Height
2.99 in
Manufacturer Warranty Length
1 yr
Overall Width
1.32 in
Mounting Hole Diameter
0.16 in
Overall Height
2.99 in
Overall Depth
1.22 in

Details

Item
Limit Switch Body
For Use With
Titan Limit Switch
IP Rating
IP66, IP67
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Operating Temp.
-13 Degrees to 158 Degrees F
Standards
RoHS, UL Listed
Electrical Connection
Cage Clamp
AC Contact Rating
6 A @ 240 V
Contact Form
1NO/1NC
DC Contact Rating
3 A @ 24 V
Material
Zinc
Accuracy
±0.02mm
Connection
Cage clamps
Certifications
UL Listed
Enclosure material
Die cast zinc
Operating temperature - min
-13°F
Type
LS-Titan
Maximum DC current
3 A
Contact Rating
6A at 240Vac, 3A at 24Vdc
Maximum AC current
6 A
Switch type
Top push plunger
Contact configuration
1 NO-1 NC, snap action, positive opening
Operating temperature - max
158°F
Environmental rating
IP66, IP67
Product Name
Eaton LS-Titan miniature DIN limit switch
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
20 mm
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Compatible with Series
LS-Titan

Description

Limit Switch Body, Contact Form 1NO/1NC, For Use With Titan Limit Switch, AC Contact Rating 6 A @ 240 V, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, Electrical Connection Cage Clamp, IP Rating IP66, IP67, Operating Temp. -13 Degrees to 158 Degrees F, Standards RoHS, UL Listed
