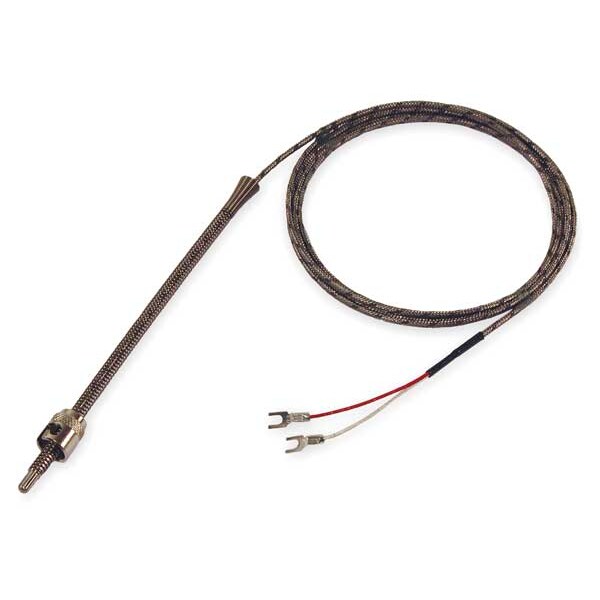

Thermocouple Probe, Spade Lugs, Type J

  • Mfr # TCP10221
  • Zoro # G0979562
product price:
$
40.39
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
900 Degrees F
Thermocouple Element
20 AWG
Probe Length
6.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TCP10221
Zoro #
G0979562
UPC #
-
Country of Origin
United States
Item
Spring Adjustable Thermocouple
Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
900 Degrees F
Thermocouple Element
20 AWG
Material
304 Stainless Steel
Plug or Connector Type
Fork Terminal
Error Accuracy (%)
+/-0.75
Standards
ANSI
Insulation
Fiberglass With Stainless Steel Braid
Maximum Wire Gauge
0.25 mm
Maximum Temperature F
1,400 Degrees F
For Application
Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical
Junction Type
Grounded
Probe Sheath Material
304 Stainless Steel
Sensor Type
Thermocouple
For Gases
No
Accuracy
+/-2.2 Degrees C or +/-0.75 %, Whichever is Greater
Process Mounting
Spring-Loaded Bayonet Cap
Tip Style
Rounded
Minimum Temperature C
0 Degrees C
Includes Thermowell
No
Connector Type
Spade Lugs
For Liquids and Gels
No
Cable Material
Fiberglass with Stainless Steel Braid
Maximum Temperature C
760 Degrees C
Fitting Type
Bayonet
Temperature Range
32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C
For Surfaces
No
Minimum Temperature F
32 Degrees F
For Solids
Yes
For Air
No
Maximum Temperature °F
1,400 Degrees F
Minimum Temperature °F
32 Degrees F
Maximum Temperature °C
760 Degrees C
Minimum Temperature °C
0 Degrees C
Minimum Temperature °C
0 Degrees C
Maximum Temperature °F
1,400 Degrees F
Maximum Temperature °C
760 Degrees C
Minimum Temperature °F
32 Degrees F
Process Mounting Connection
Bayonet
For Media Type
Solids, Surfaces
Maximum Temperature (°F)
1,400 Degrees F
Maximum Temperature (°C)
760 Degrees C
Probe Bend
Straight

Dimensions

Probe Length
6.5 in
Lead Length
6 ft
Sheath Size (In.)
0.188 in
Probe Size
1/4 in x 6 1/2 in
Cable Length
6 ft
Opening/Diameter
7/16 in ID Bayonet Cap
Probe Tip Diameter
0.25 in
Probe Diameter
0.25 in

Description

Spring Adjustable Thermocouple, Type J, Grounded, For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical, Spring-Loaded Bayonet Cap, Spade Lugs, Probe Size 1/4 in x 6 1/2 in, Cable Length 6 ft, 32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C, Thermocouple
