  15. 1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13

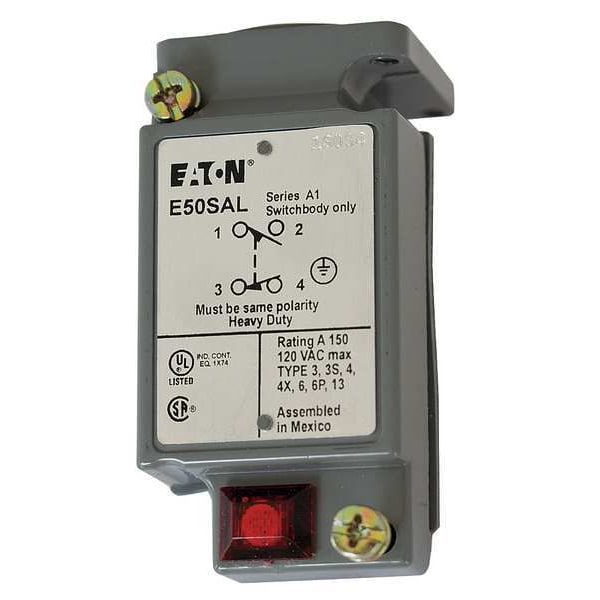

Eaton 1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13 E50SAL - main

1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13

  • Mfr # E50SAL

  • Zoro # G5232997

product price: $258.99
/ea
Free Shipping & Returns

Key Features

For Use With
E50 Limit Switch
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temp.
-40 Degrees to 221 Degrees F
AC Contact Rating
10 A @ 12 V
IP Rating
IP67
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50SAL
Zoro #
G5232997
UPC #
782113775364
Country of Origin
Mexico

Dimensions

Product Width
1.54 in
Product Height
1.73 in
Product Length/Depth
3.14 in
Manufacturer Warranty Length
1 yr
Overall Height
1.73 in
Overall Width
1.54 in
Overall Depth
3.14 in
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch Body
For Use With
E50 Limit Switch
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temp.
-40 Degrees to 221 Degrees F
AC Contact Rating
10 A @ 12 V
IP Rating
IP67
Contact Form
1NO/1NC
Standards
CSA, RoHS, UL Listed
Material
Zinc
Series
E50 heavy duty plug in
DC Contact Rating
1 A @ 125 V
Maximum DC current
1 A
Operating temperature - max
250°F
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Number Of Poles
Single-pole
LED indicator
LED indicator
Light unit voltage
24-120 Vac/dc
Certifications
CSA Certified
Enclosure material
Die cast zinc
Contact configuration
1 NO-1 NC
Operating temperature - min
-40°F
Maximum AC current
10 A
Contact Rating
10A at 12 Vac, 1A at 125 Vdc
Compatible with Series
E50
Operating Temperature - Minimum
-40 Degrees F
Indicating Light
LED
Operating Temperature - Maximum
250 Degrees F
Body Configuration
Plug-In
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
60 mm
Mounting Hole Horizontal Center to Center Distance
30 mm
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P

Description

Limit Switch Body, Contact Form 1NO/1NC, For Use With E50 Limit Switch, AC Contact Rating 10 A @ 12 V, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Electrical Connection Not Applicable, IP Rating IP67, Operating Temp. -40 Degrees to 221 Degrees F, Standards CSA, RoHS, UL Listed
