  8. 2NC Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13

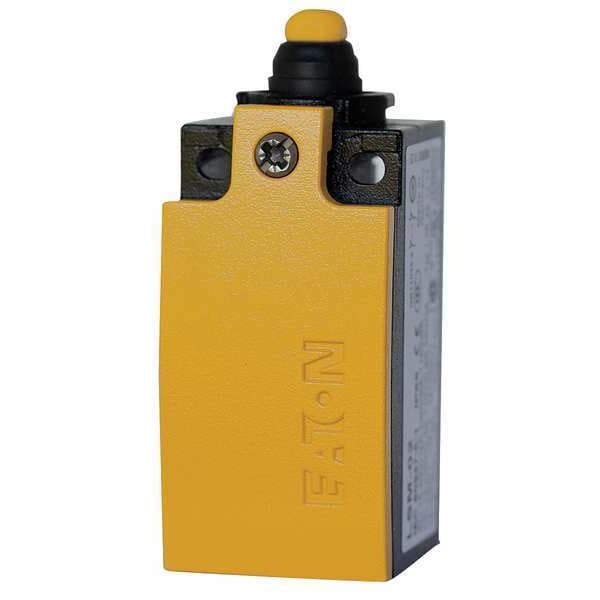

Eaton 2NC Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13 LSM-02 - main

2NC Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13

  • Mfr # LSM-02

  • Zoro # G7142676

product price:  $117.99
/ea
Free Shipping & Returns

Key Features

For Use With
Titan Limit Switch
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Operating Temp.
-13 Degrees to 158 Degrees F
Standards
RoHS, UL Listed
Contact Form
2NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSM-02
Zoro #
G7142676
UPC #
786685392141
Country of Origin
Germany

Dimensions

Product Height
2.99 in
Product Width
1.32 in
Product Length/Depth
1.22 in
Overall Height
2.99 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.22 in
Overall Width
1.32 in
Mounting Hole Diameter
0.16 in

Details

Item
Limit Switch Body
For Use With
Titan Limit Switch
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Operating Temp.
-13 Degrees to 158 Degrees F
Standards
RoHS, UL Listed
Contact Form
2NC
AC Contact Rating
6 A @ 240 V
Electrical Connection
Cage Clamp
IP Rating
IP66, IP67
Material
Zinc
DC Contact Rating
3 A @ 24 V
Accuracy
±0.02mm
Contact Rating
6A at 240Vac, 3A at 24Vdc
Switch type
Top push plunger
Type
LS-Titan
Environmental rating
IP66, IP67
Enclosure material
Die cast zinc
Maximum DC current
3 A
Operating temperature - min
-13°F
Operating temperature - max
158°F
Connection
Cage clamps
Contact configuration
2 NC, slow make break, positive opening
Certifications
UL Listed
Maximum AC current
6 A
Product Name
Eaton LS-Titan miniature DIN limit switch
Operating Temperature - Minimum
-13 Degrees F
Compatible with Series
LS-Titan
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Number of Mounting Holes
2
Operating Temperature - Maximum
158 Degrees F
Mounting Hole Horizontal Center to Center Distance
20 mm

Description

Limit Switch Body, Contact Form 2NC, For Use With Titan Limit Switch, AC Contact Rating 6 A @ 240 V, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, Electrical Connection Cage Clamp, IP Rating IP66, IP67, Operating Temp. -13 Degrees to 158 Degrees F, Standards RoHS, UL Listed
