  15. 1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13

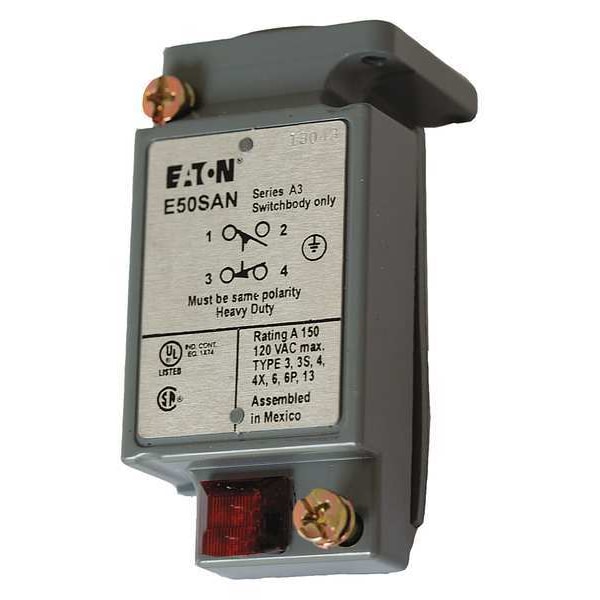

Eaton 1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13 E50SAN - main

1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13

  • Mfr # E50SAN

  • Zoro # G5232981

product price: $239.99
/ea
Free Shipping & Returns

Key Features

For Use With
E50 Limit Switch
Contact Form
1NO/1NC
Operating Temp.
-40 Degrees to 221 Degrees F
Standards
CSA, RoHS, UL Listed
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50SAN
Zoro #
G5232981
UPC #
782113290690
Country of Origin
Mexico

Dimensions

Product Length/Depth
3.14 in
Product Height
1.73 in
Product Width
1.54 in
Overall Width
1.54 in
Overall Height
1.73 in
Overall Depth
3.14 in
Manufacturer Warranty Length
1 yr
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch Body
For Use With
E50 Limit Switch
Contact Form
1NO/1NC
Operating Temp.
-40 Degrees to 221 Degrees F
Standards
CSA, RoHS, UL Listed
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
IP Rating
IP67
AC Contact Rating
10 A @ 12 V
Series
E50 heavy duty plug in
Material
Zinc
DC Contact Rating
1 A @ 125 V
Indicator type
Neon light
Contact Rating
10A at 12 Vac, 1A at 125 Vdc
Operating temperature - max
250°F
Light unit voltage
120 Vac
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Operating temperature - min
-40°F
Enclosure material
Die cast zinc
Contact configuration
1 NO-1 NC
Certifications
UL Recognized
Number Of Poles
Single-pole
Maximum DC current
1 A
Maximum AC current
10 A
Compatible with Series
E50
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
60 mm
Body Configuration
Plug-In
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Mounting Hole Horizontal Center to Center Distance
30 mm
Operating Temperature - Maximum
250 Degrees F
Indicating Light
Neon
Operating Temperature - Minimum
-40 Degrees F

Description

Limit Switch Body, Contact Form 1NO/1NC, For Use With E50 Limit Switch, AC Contact Rating 10 A @ 12 V, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Electrical Connection Not Applicable, IP Rating IP67, Operating Temp. -40 Degrees to 221 Degrees F, Standards CSA, RoHS, UL Listed
