  8. 2NO Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13

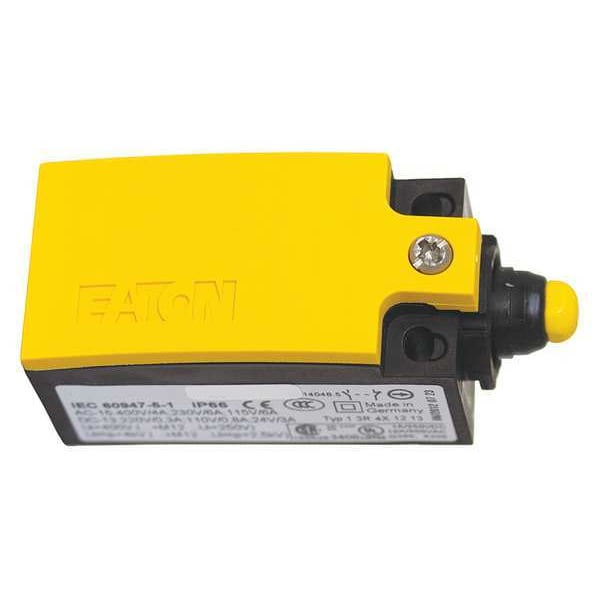

Eaton 2NO Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13 LS-S20A - main

2NO Limit Switch Body Nema 1, 2, 4, 4X, 6, 12, 13

  • Mfr # LS-S20A

  • Zoro # G7056515

product price:  $76.49
/ea
Free Shipping & Returns

Key Features

For Use With
Titan Limit Switch
Standards
RoHS, UL Listed
AC Contact Rating
6 A @ 230 V
Electrical Connection
Screw Terminal
Contact Form
2NO
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-S20A
Zoro #
G7056515
UPC #
786685392509
Country of Origin
Germany

Dimensions

Product Width
1.22 in
Product Height
1.32 in
Product Length/Depth
2.99 in
Overall Height
1.32 in
Overall Depth
2.99 in
Overall Width
1.22 in
Manufacturer Warranty Length
1 yr
Mounting Hole Diameter
0.16 in

Details

Item
Limit Switch Body
For Use With
Titan Limit Switch
Standards
RoHS, UL Listed
AC Contact Rating
6 A @ 230 V
Electrical Connection
Screw Terminal
Contact Form
2NO
IP Rating
IP66, IP67
Operating Temp.
-13 Degrees to 158 Degrees F
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Series
LS-Titan
DC Contact Rating
3 A @ 24 V
Material
Plastic
Output
2 NO with slow make/break
Accuracy
±0.02mm
Maximum AC current
6 A at 230 Vac
Operating speed
99.97 cm/sec
Contact Rating
6A at 230 Vac, 3A at 24 Vdc
Operating temperature - max
158°F
Enclosure material
Plastic
Operating temperature - min
-13°F
Environmental rating
IP66, IP67
Maximum DC current
3 A at 24 Vdc
Type
LS-Titan
Contact configuration
2 NC with positive opening contacts
Connection
Screw terminal
Certifications
UL Listed
Product Name
Eaton LS-Titan miniature DIN limit switch
Mounting Hole Horizontal Center to Center Distance
20 mm
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Operating Temperature - Minimum
-13 Degrees F
Compatible with Series
LS-Titan
Number of Mounting Holes
2

Description

Limit Switch Body, Contact Form 2NO, For Use With Titan Limit Switch, AC Contact Rating 6 A @ 230 V, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, Electrical Connection Screw Terminal, IP Rating IP66, IP67, Operating Temp. -13 Degrees to 158 Degrees F, Standards RoHS, UL Listed
