Shop EATON

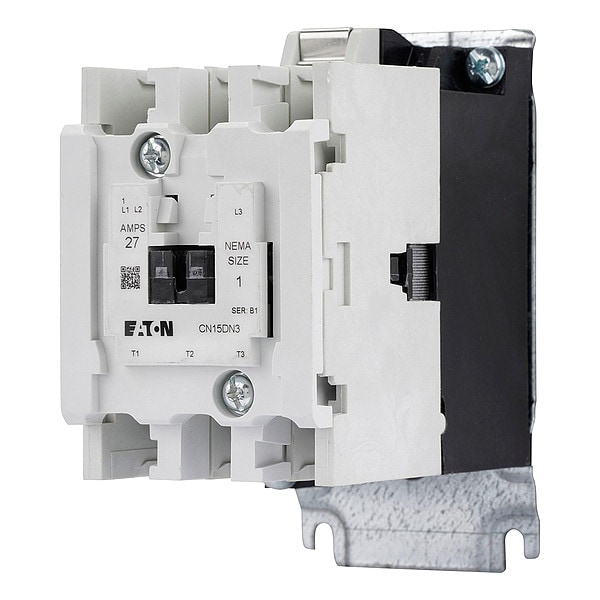

208VAC Non-Reversing Magnetic Contactor 3P 27A NEMA 1

  • Mfr # CN15DN3EB

  • Zoro # G3734087

product price:
$
669.99
/ea
Free Shipping & Returns

Key Features

Action
Non-Reversing
Full Load Amps
27 A
Number of Poles
3
NEMA Contactor Size
1
Reversing
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CN15DN3EB
Zoro #
G3734087
UPC #
782113026787
Country of Origin
Dominican Republic
Item
NEMA Magnetic Contactor
Action
Non-Reversing
Full Load Amps
27 A
Number of Poles
3
Coil Volts
208V AC
Reversing
No
HP @ 1 Phase - 120V
2 hp
HP @ 1 Phase - 240V
3 hp
HP @ 3 Phase - 208V
7 1/2 hp
HP @ 3 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 575V
10 hp
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 480V
10 hp
Hz
50/60
Auxiliary Contact Form
1NO
Frame / Series / Class / Code
Series Freedom, Code A, Frame 180mm
Standards
CSA, UL Listed
Series
Freedom
HP rating - max
2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V
Amperage Rating
27A
Phase
Three
Certifications
UL Listed
Product Name
Eaton Freedom NEMA motor control contactor
Horsepower @ Three Phase - 600V AC
10 hp
Electrical Operating Durability
200,000 (AC-4), 500,000 (AC-3)
Horsepower @ Single Phase - 240V AC
3 hp
Full Load Current - Inductive
27 A
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Embedded Surge Suppressor
No
Coil Voltage
208V AC
Number of Auxillary Contacts
1
Mounting Postion
Horizontal, Vertical
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Minimum Operating Temperature
-4 Degrees F
Contactor Style
NEMA
Mounting Style
Panel
Includes Auxiliary Contacts
Yes
Resistance Properties
Impact Resistant, Temperature Resistant
Maximum Voltage Rating
600V AC
NEMA Enclosure Rating
No Enclosure
Response Time
20 msec
Maximum Operating Temperature
149 Degrees F
Frequency
60 Hz
Horsepower @ Single Phase - 120V AC
2 hp
Mechanical Operating Durability
10,000,000
Terminal Connection Type
Screw Terminals
Horsepower @ Three Phase - 480V AC
10 hp
Reversing Capability
Non-Reversing

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 1, Coil Voltage 208V AC, Number of Poles 3, Full Load Current - Inductive 27 A, Reversing Capability Non-Reversing, Overall Height 5.05 in, Overall Width 2.56 in, Terminal Connection Type Screw Terminals, Frame Size D, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp
