  11. Extension Cordset, 4Pin, Receptacle, Female

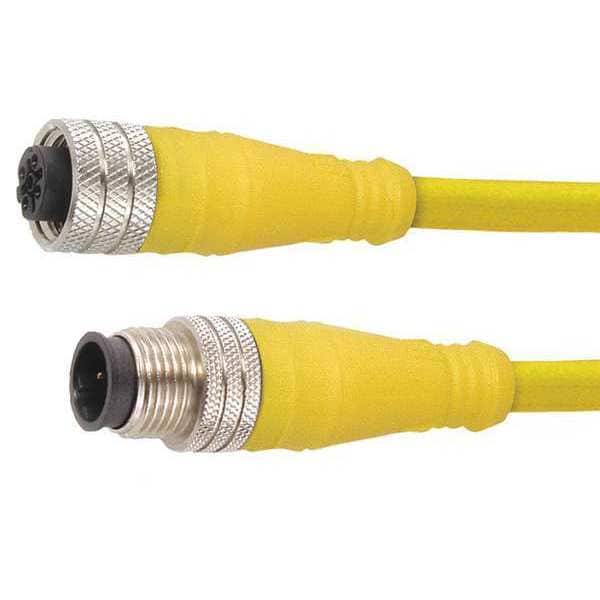

Brad Harrison Extension Cordset, 4Pin, Receptacle, Female 884030A09M050 - main

Extension Cordset, 4Pin, Receptacle, Female

  • Mfr # 884030A09M050

  • Zoro # G3498783

product price: $51.19
/ea

Key Features

End 1 Number of Pins
4
End 2 Number of Pins
4
Cable Length
5 m
Wire Size
22 AWG
IP Rating
IP67, IP68
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
884030A09M050
Zoro #
G3498783
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
5 m
Wire Size
22 AWG
Cable Diameter
5.33mm (.210")
Connector Mating Size
M12x1

Details

Item
Cordset
End 1 Number of Pins
4
End 2 Number of Pins
4
IP Rating
IP67, IP68
End 1 Gender and Plug End
Female Straight
End 1 Thread
M12
End 2 Keyway
Single
End 2 Gender and Plug End
Male Straight
Max. Amps
4 A
Temp. Range
-20 Degrees to 105 Degrees C
End 2 Thread
M12
Standards
CSA Certified, UL Listed
End 1 Keyway
Single
End 2 Connection Type
M12
Features
Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Double Ended; Single Keyway
End 1 Connection Type
M12
Number of Conductors
4
Max. Voltage
250VAC/DC
NEMA Rating
6P
Color
Yellow
Keyway
Single
End 2 Number of Keyways
1
End 1 Number of Keyways
1
End 1 Mounting Orientation
Straight
End 1 Gender
Male
Cable Jacket Material
PVC
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
221 Degrees F
End 2 Mounting Orientation
Straight
Number of Wires
4
Cable Jacket Color
Yellow
End 2 Gender
Female
Orientation
Straight to Straight
Voltage - Maximum
250V AC/DC
Material - Coupling Nut
Nickel-plated Brass
Temperature Range - Operating
-20°C to +105°C
Current - Maximum per Contact
4.0A
Material - Connector Body
PVC
Material - Plating Mating
Gold
Wire/Cable Type
UL 2661
CSA
LR6837
LED Indicator
No
Gender
Female-Male
Coupling Style
Threaded
UL
E152210
Material - O-Ring
Fluoro-elastomer
Poles
4
Connector Material
PVC Body, Nickel Plated Brass Nut
Assembly Type
Double End Cordset
Product Type
Double Ended

Description

Extension Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M12, End 2 Mounting Orientation Straight, End 2 Number of Pins 4, End 2 Connection Type M12, Cable Length 5 m, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68
