Shop EATON

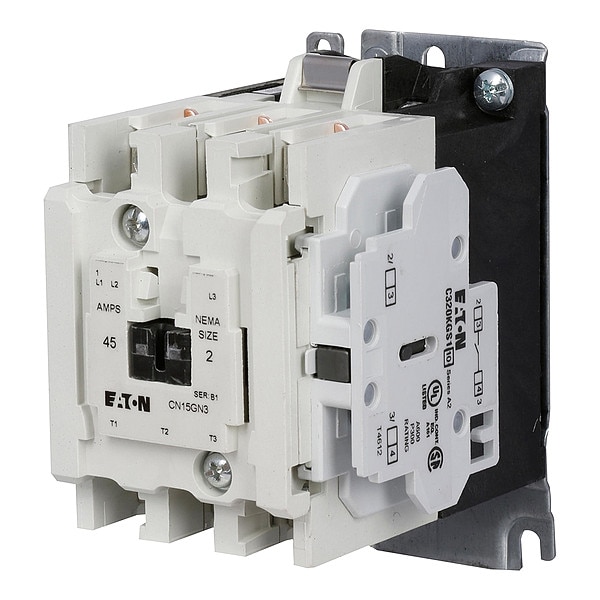

208VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2

  • Mfr # CN15GN3EB

  • Zoro # G3608193

product price:
$
1,159.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
45 A
Action
Non-Reversing
Number of Poles
3
NEMA Contactor Size
2
Reversing
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CN15GN3EB
Zoro #
G3608193
UPC #
782113026848
Country of Origin
Dominican Republic

Dimensions

NEMA Contactor Size
2
Height
3.4 in
Width
4.8 in
Depth
5.6 in
NEMA Size
2
Size
2
Product Height
5.05 in
Product Width
2.56 in
Product Length/Depth
4.44 in
Overall Width
2.56 in
Overall Depth
4.44 in
Overall Height
5.05 in
Mounting Hole Distance - Width
2 in
Mounting Hole Distance - Height
4.5 in
Frame Size
G
Mounting Hole Diameter
0.25 in

Details

Item
NEMA Magnetic Contactor
Full Load Amps
45 A
Action
Non-Reversing
Number of Poles
3
Coil Volts
208V AC
Reversing
No
HP @ 1 Phase - 120V
3 hp
HP @ 1 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 208V
10 hp
HP @ 3 Phase - 575V
25 hp
HP @ 3 Phase - 240V
15 hp
HP @ 3 Phase - 480V
25 hp
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
Series Freedom, Code A, Frame 180mm
Standards
CSA, UL Listed
Hz
50/60
Auxiliary Contact Form
1NO
Series
Freedom
Amperage Rating
45A
Phase
Three
Certifications
UL Listed
HP rating - max
3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V
Product Name
Eaton Freedom NEMA motor control contactor
Terminal Connection Type
Screw Terminals
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 240V AC
15 hp
Reversing Capability
Non-Reversing
Maximum Voltage Rating
600V AC
Maximum Operating Temperature
149 Degrees F
Horsepower @ Three Phase - 600V AC
25 hp
Frequency
60 Hz
Contactor Style
NEMA
Electrical Operating Durability
3,500,000 (AC-3), 62,000 (AC-4)
Resistance Properties
Impact Resistant, Temperature Resistant
Minimum Operating Temperature
-4 Degrees F
Mounting Postion
Horizontal, Vertical
Includes Auxiliary Contacts
Yes
Coil Voltage
208V AC
Mechanical Operating Durability
10,000,000
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Full Load Current - Inductive
45 A
Response Time
20 msec
NEMA Enclosure Rating
No Enclosure
Number of Auxillary Contacts
1
Horsepower @ Three Phase - 480V AC
25 hp
Horsepower @ Single Phase - 120V AC
3 hp
Embedded Surge Suppressor
No
Mounting Style
Panel

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 208V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 5.05 in, Overall Width 2.56 in, Terminal Connection Type Screw Terminals, Frame Size G, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp
